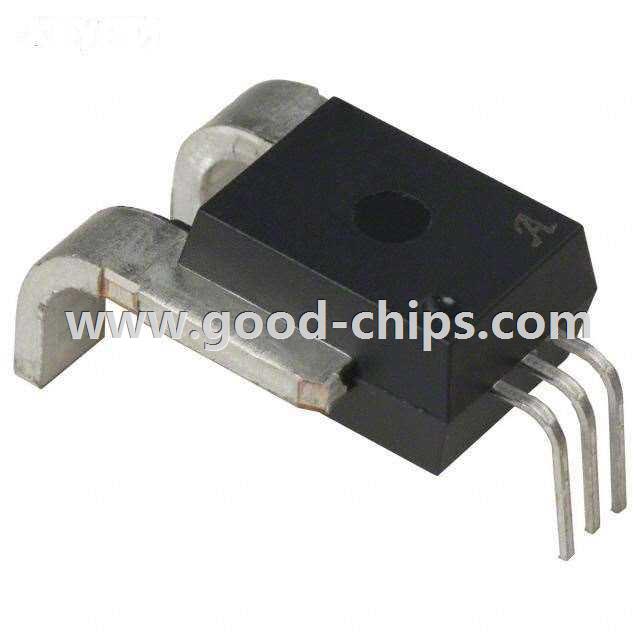

Manufacturer Part Number: | ACS750SCA-100 |
---|---|
Manufacturer: | Allegro MicroSystems, LLC |
Product Category: | Current Transducers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Current Sensor 100A 1 Channel Hall Effect, Open Loop Bidirectional 5-CA Formed Leads |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ACS750SCA-100 Datasheet |
Internal Part Number | 898-ACS750SCA-100 | |
Manufacturer Lead time | 6-8 weeks | |
지위 | New & Unused, Original Sealed | |
Category | Sensors, Transducers | |
Family | Current Transducers | |
Manufacturer | Allegro MicroSystems, LLC | |
Series | - | |
Packaging | Tube | |
Part Status | Obsolete | |
For Measuring | AC/DC | |
Sensor Type | Hall Effect, Open Loop | |
Current - Sensing | 100A | |
Number of Channels | 1 | |
Output | Ratiometric, Voltage | |
Sensitivity | 19.75mV/A | |
Frequency | DC ~ 13kHz | |
Linearity | ±5% | |
Accuracy | ±1.5% | |
Voltage - Supply | 5V | |
Response Time | 27µs | |
Current - Supply (Max) | 10mA | |
Operating Temperature | -20°C ~ 85°C | |
Polarization | Bidirectional | |
Mounting Type | Through Hole | |
Package / Case | 5-CA Formed Leads | |
Standard Package | 170 | |
무게 | 0.001 KG | |
신청 | Email for details | |
Replacement Part | ACS750SCA-100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ACS750SCA-100 is in stock for immediate shipping now. We are the distributor of Allegro MicroSystems, LLC all series components. The condition of ACS750SCA-100 is new and unused, you can buy ACS750SCA-100 Allegro MicroSystems, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACS750SCA-100.
