| Manufacturer Part Number: | ACPL-331J-500E |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Isolators - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

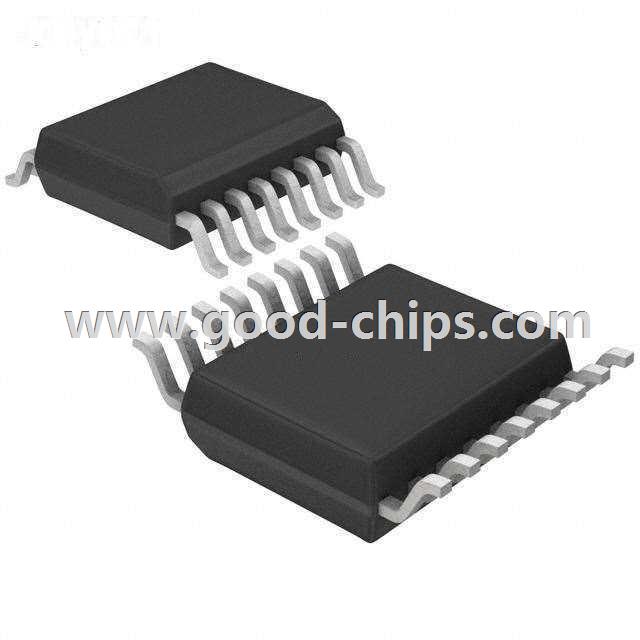

| Description: | 1.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SO |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACPL-331J-500E Datasheet |
| Internal Part Number | 898-ACPL-331J-500E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Voltage Upgrade 13/Jan/2011 Multiple Devices 19/Feb/2013 Insulation Voltage Update 05/Mar/2015 Mult Device Design Changes 10/Nov/2015 Molding Chg 08/Feb/2016 | |
| PCN Packaging | Multiple Devices Marking/Labeling 07/Aug/2013 Marking/Labeling Revision B 14/Jan/2014 | |
| Category | Isolators | |
| Family | Isolators - Gate Drivers | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Technology | Optical Coupling | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Common Mode Transient Immunity (Min) | 15kV/µs | |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns | |
| Pulse Width Distortion (Max) | 100ns | |
| Rise / Fall Time (Typ) | 50ns, 50ns | |
| Current - Output High, Low | 1A, 1A | |
| Current - Peak Output | 1.5A | |
| Voltage - Forward (Vf) (Typ) | 1.6V | |
| Current - DC Forward (If) (Max) | 25mA | |
| Voltage - Supply | 15 V ~ 30 V | |
| Operating Temperature | -40°C ~ 105°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 16-SO | |
| Approvals | CSA, IEC/EN/DIN, UR | |
| Standard Package | 850 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACPL-331J-500E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACPL-331J-500E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ACPL-331J-500E is new and unused, you can buy ACPL-331J-500E Broadcom Limited with us at a very low price and quick delivery.
