| Manufacturer Part Number: | ACPL-227-56CE |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor Output 3000Vrms 2 Channel 8-SO |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACPL-227-56CE Datasheet |
| Internal Part Number | 898-ACPL-227-56CE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Channels | 2 | |
| Voltage - Isolation | 3000Vrms | |
| Current Transfer Ratio (Min) | 200% @ 5mA | |
| Current Transfer Ratio (Max) | 400% @ 5mA | |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs | |
| Rise / Fall Time (Typ) | 2µs, 3µs | |
| Input Type | DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 80V | |
| Current - Output / Channel | 50mA | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | 400mV | |
| Operating Temperature | -55°C ~ 110°C | |
| Mounting Type | Surface Mount | |

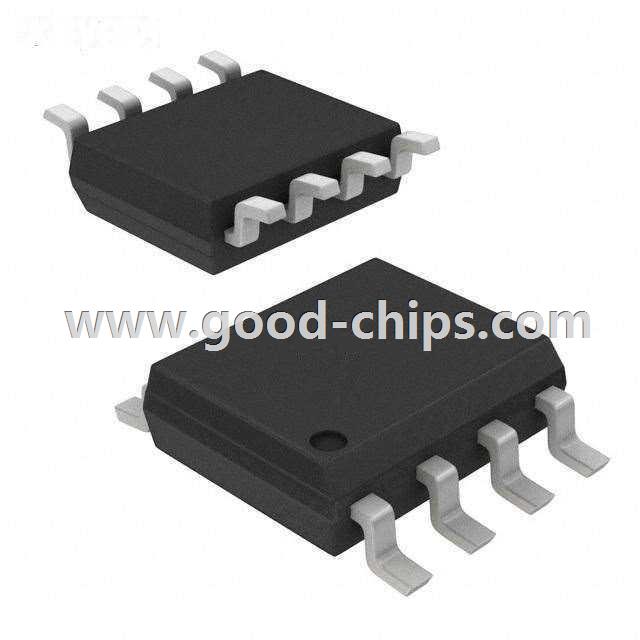

| Package / Case | 8-SOIC (0.173", 4.40mm Width) | |
| Supplier Device Package | 8-SO | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACPL-227-56CE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACPL-227-56CE is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ACPL-227-56CE is new and unused, you can buy ACPL-227-56CE Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACPL-227-56CE.
