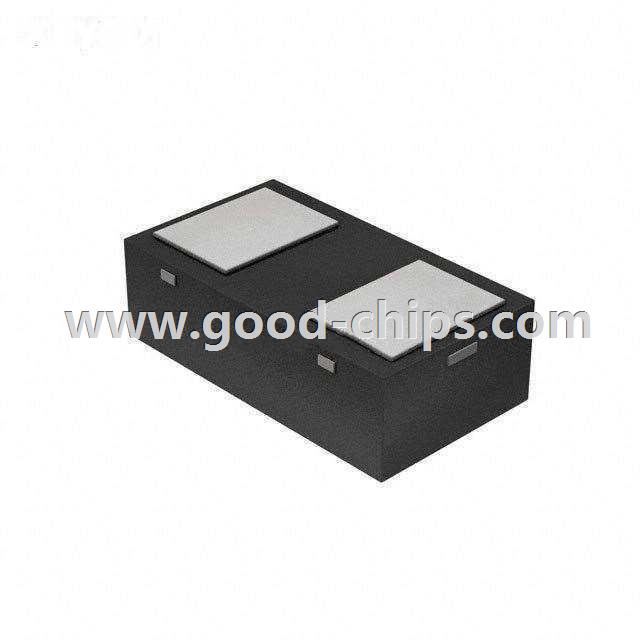

| Manufacturer Part Number: | ACPDUC5V0U-HF |
|---|---|
| Manufacturer: | Comchip Technology |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 12.5VC 0603 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACPDUC5V0U-HF Datasheet |
| Internal Part Number | 898-ACPDUC5V0U-HF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Wafer Chg 11/Apr/2016 | |
| PCN Packaging | Label D/C Chg24/Mar/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Automotive, AEC-Q101, ACPD Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Comchip Technology | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 5V | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 12.5V | |
| Current - Peak Pulse (10/1000µs) | 16A (8/20µs) | |
| Power - Peak Pulse | 200W | |
| Power Line Protection | No | |
| Applications | Automotive | |
| Capacitance @ Frequency | 90pF @ 1MHz | |
| Operating Temperature | -55°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, No Lead | |
| Supplier Device Package | 0603C/SOD-523F | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACPDUC5V0U-HF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACPDUC5V0U-HF is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of ACPDUC5V0U-HF is new and unused, you can buy ACPDUC5V0U-HF Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACPDUC5V0U-HF.
