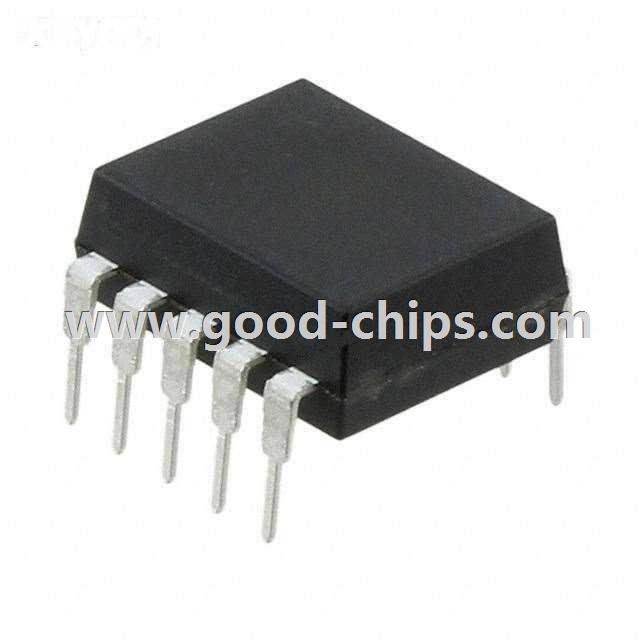

| Manufacturer Part Number: | ACNV2601-000E |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 7500Vrms 1 Channel 20kV/µs CMTI 10-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACNV2601-000E Datasheet |
| Internal Part Number | 898-ACNV2601-000E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Multiple Devices Marking/Labeling 07/Aug/2013 Marking/Labeling Revision B 14/Jan/2014 | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 7500Vrms | |
| Common Mode Transient Immunity (Min) | 20kV/µs | |
| Input Type | DC | |
| Output Type | Open Collector, Schottky Clamped | |
| Current - Output / Channel | 50mA | |
| Data Rate | 10MBd | |
| Propagation Delay tpLH / tpHL (Max) | 80ns, 80ns | |
| Rise / Fall Time (Typ) | 25ns, 10ns | |
| Voltage - Forward (Vf) (Typ) | 1.64V | |
| Current - DC Forward (If) (Max) | 20mA | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 105°C | |
| Mounting Type | Through Hole | |
| Package / Case | 10-DIP (0.433", 11.01mm) | |
| Supplier Device Package | 10-DIP | |
| Standard Package | 175 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACNV2601-000E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACNV2601-000E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ACNV2601-000E is new and unused, you can buy ACNV2601-000E Broadcom Limited with us at a very low price and quick delivery.
