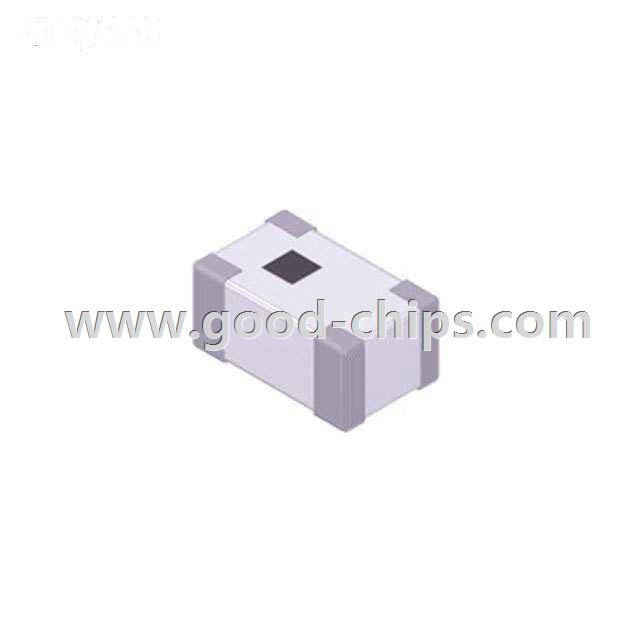

Manufacturer Part Number: | ACMF-31-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Common Mode Chokes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 2 Line Common Mode Choke Surface Mount 200mA DCR 2 Ohm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ACMF-31-T Datasheet |
Internal Part Number | 898-ACMF-31-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Filters | |
Family | Common Mode Chokes | |
Manufacturer | Abracon LLC | |
Series | ACMF-31 | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Filter Type | Signal Line | |
Number of Lines | 2 | |
Impedance @ Frequency | - | |
Inductance @ Frequency | - | |
Current Rating (Max) | 200mA | |
DC Resistance (DCR) (Max) | 2 Ohm | |
Voltage Rating - DC | - | |
Voltage Rating - AC | - | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Approvals | - | |
Features | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
Height (Max) | 0.039" (1.00mm) | |
Package / Case | 1206 (3216 Metric) (4 Leads) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ACMF-31-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ACMF-31-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ACMF-31-T is new and unused, you can buy ACMF-31-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACMF-31-T.
