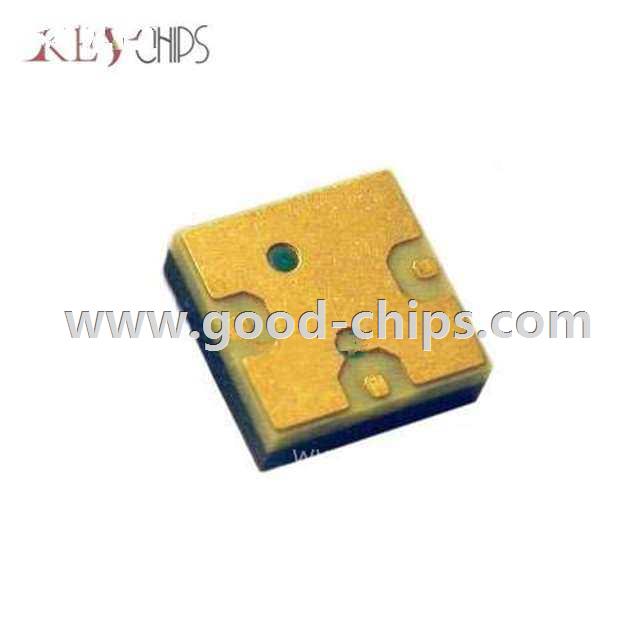

| Manufacturer Part Number: | ACMD-7402-BLK |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | RF Diplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Diplexor 1.85GHz ~ 1.9GHz / 1.93GHz ~ 1.99GHz 3-CSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACMD-7402-BLK Datasheet |
| Internal Part Number | 898-ACMD-7402-BLK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 28/Jul/2015 | |
| PCN Assembly/Origin | Multiple Devices 31/May/2013 | |
| Category | RF/IF and RFID | |
| Family | RF Diplexers | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Frequency Bands (Low / High) | 1.85GHz ~ 1.9GHz / 1.93GHz ~ 1.99GHz | |
| Low Band Attenuation (min / max dB) | 52.00dB / - | |
| High Band Attenuation (min / max dB) | 43.00dB / - | |
| Return Loss (Low Band / High Band) | 20dB / 17dB | |
| Mounting Type | Surface Mount | |
| Package / Case | 3-CSP | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACMD-7402-BLK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACMD-7402-BLK is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ACMD-7402-BLK is new and unused, you can buy ACMD-7402-BLK Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACMD-7402-BLK.
