| Manufacturer Part Number: | ACFL-5212T-000E |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 9176 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor Output 5000Vrms 2 Channel 12-SO |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACFL-5212T-000E Datasheet |
| Internal Part Number | 898-ACFL-5212T-000E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | ACFL-5212T Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Broadcom Limited | |
| Series | Automotive, AEC-Q100, R²Coupler™ | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 2 | |
| Voltage - Isolation | 5000Vrms | |
| Current Transfer Ratio (Min) | 32% @ 10mA | |
| Current Transfer Ratio (Max) | 100% @ 10mA | |
| Turn On / Turn Off Time (Typ) | 20µs, 20µs (Max) | |
| Rise / Fall Time (Typ) | - | |
| Input Type | DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 20V | |
| Current - Output / Channel | 8mA | |
| Voltage - Forward (Vf) (Typ) | 1.5V | |
| Current - DC Forward (If) (Max) | 20mA | |
| Vce Saturation (Max) | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

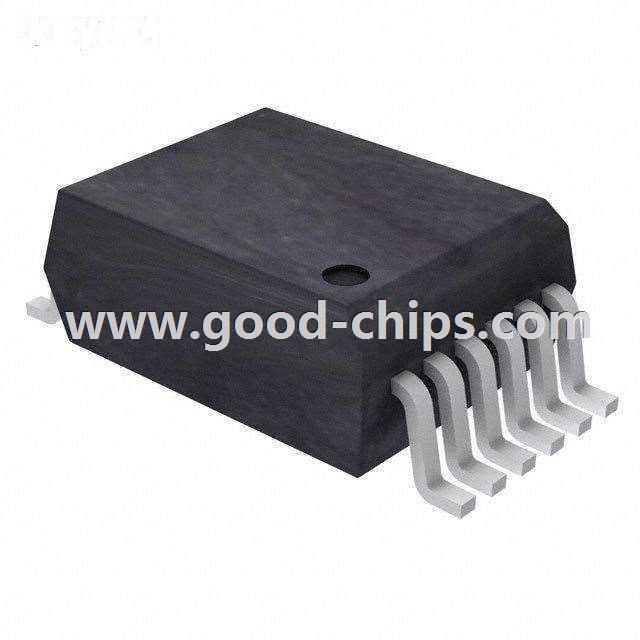

| Package / Case | 12-BSOP (0.295", 7.50mm Width) | |
| Supplier Device Package | 12-SO | |
| Standard Package | 80 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACFL-5212T-000E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACFL-5212T-000E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ACFL-5212T-000E is new and unused, you can buy ACFL-5212T-000E Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACFL-5212T-000E.
