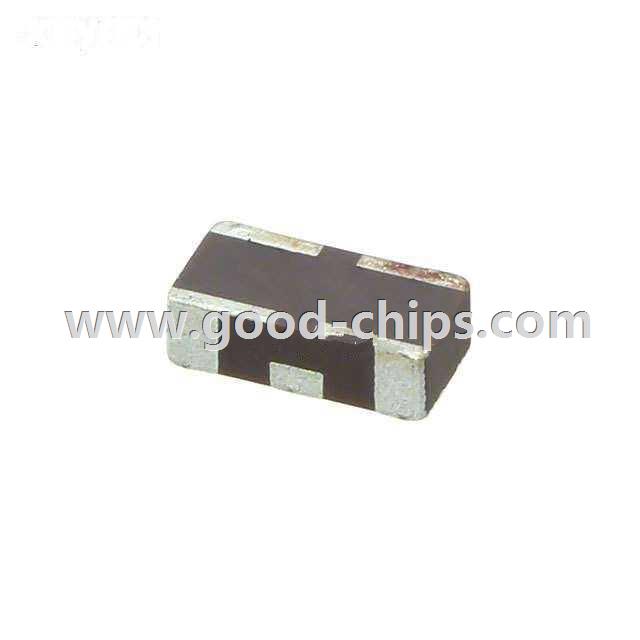

Manufacturer Part Number: | ACA-108-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | RF Antennas |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 2.4GHz Bluetooth, GPS, WCDMA, WiMax™ Chip RF Antenna 1.55GHz ~ 2.7GHz 2.98dBi Solder Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ACA-108-T Datasheet |
Internal Part Number | 898-ACA-108-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Extended ACA Series of Ceramic Chip Antennas | |
Design Resources | IoT Product Selector | |
Featured Product | ACA Series Chip Antennas | |
Online Catalog | Abracon Corporation - Embedded | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Abracon LLC | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Frequency Group | UHF (2 GHz ~ 3 GHz) | |
Frequency (Center/Band) | 2.4GHz | |
Frequency Range | 1.55GHz ~ 2.7GHz | |
Antenna Type | Chip | |
Number of Bands | 1 | |
VSWR | 3 | |
Return Loss | - | |
Gain | 2.98dBi | |
Power - Max | - | |
Features | - | |
Termination | Solder | |
Ingress Protection | - | |
Mounting Type | Surface Mount | |
Height (Max) | 0.047" (1.20mm) | |
Applications | Bluetooth, GPS, WCDMA, WiMax™ | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ACA-108-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ACA-108-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ACA-108-T is new and unused, you can buy ACA-108-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACA-108-T.
