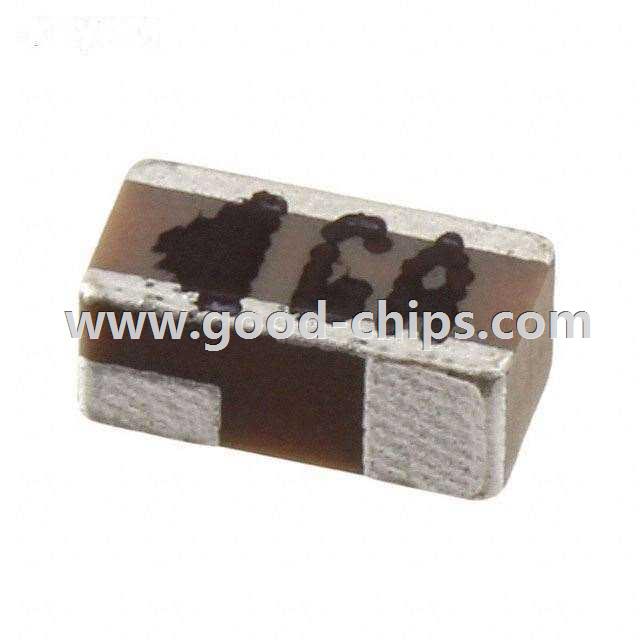

| Manufacturer Part Number: | ACA-104-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | RF Antennas |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.575GHz GPS Chip RF Antenna 1.57GHz ~ 1.58GHz 1.73dBi Solder Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACA-104-T Datasheet |
| Internal Part Number | 898-ACA-104-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ACA Series Ceramic Chip Antenna | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Abracon Corporation - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Abracon LLC | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | |
| Frequency (Center/Band) | 1.575GHz | |
| Frequency Range | 1.57GHz ~ 1.58GHz | |
| Antenna Type | Chip | |
| Number of Bands | 2 | |
| VSWR | 1, 3 | |
| Return Loss | - | |
| Gain | 1.73dBi | |
| Power - Max | - | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.047" (1.20mm) | |
| Applications | GPS | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACA-104-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACA-104-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ACA-104-T is new and unused, you can buy ACA-104-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACA-104-T.
