Manufacturer Part Number: | ACA-102-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | RF Antennas |
Available Quantity: | 10010 Pieces |
Unit Price: | Quote by Email |

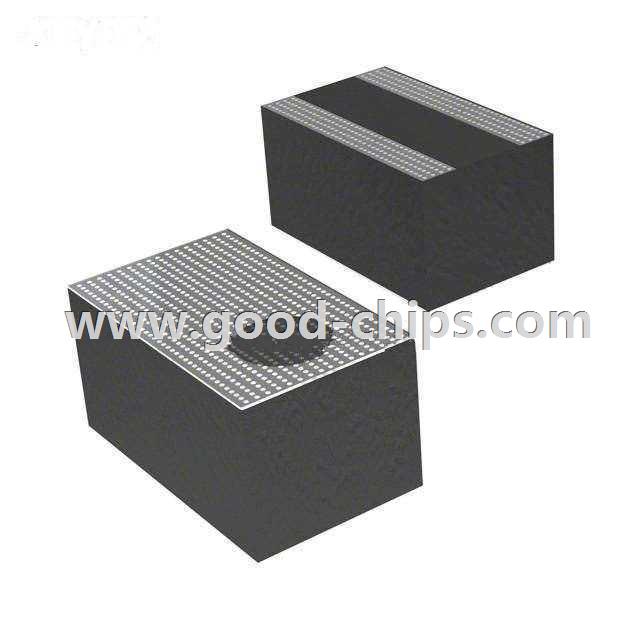

Description: | 2.4GHz Bluetooth, WLAN Chip RF Antenna 2.4GHz ~ 2.485GHz 0.6dBi Solder Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ACA-102-T Datasheet |
Internal Part Number | 898-ACA-102-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | ACA Series Ceramic Chip Antenna | |
Design Resources | IoT Product Selector | |
Online Catalog | Abracon Corporation - Embedded | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Abracon LLC | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Frequency Group | UHF (2 GHz ~ 3 GHz) | |
Frequency (Center/Band) | 2.4GHz | |
Frequency Range | 2.4GHz ~ 2.485GHz | |
Antenna Type | Chip | |
Number of Bands | 1 | |
VSWR | 1, 2.6 | |
Return Loss | - | |
Gain | 0.6dBi | |
Power - Max | - | |
Features | - | |
Termination | Solder | |
Ingress Protection | - | |
Mounting Type | Surface Mount | |
Height (Max) | 0.039" (1.00mm) | |
Applications | Bluetooth, WLAN | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ACA-102-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ACA-102-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ACA-102-T is new and unused, you can buy ACA-102-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACA-102-T.
