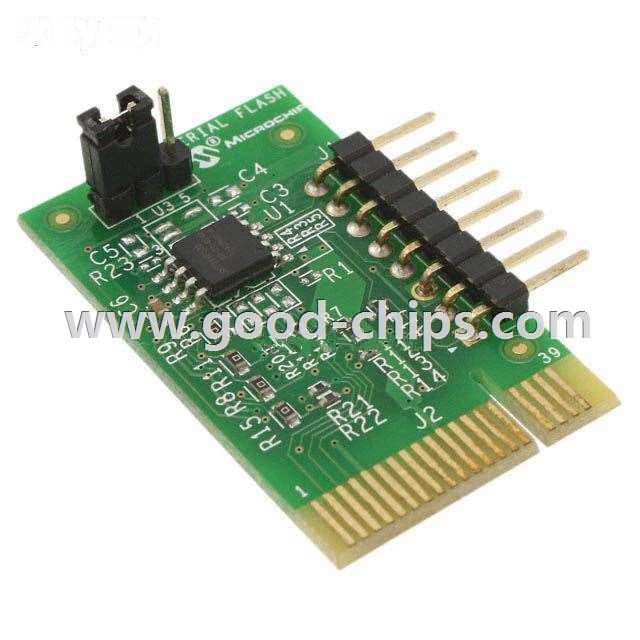

| Manufacturer Part Number: | AC243005-1 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9019 Pieces |
| Unit Price: | Quote by Email |
| Description: | SST25VF016B, SST25VF064C, SST26VF032 PICtail™ Plus Series Memory, Flash Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AC243005-1 Datasheet |
| Internal Part Number | 898-AC243005-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | Serial SuperFlash® Kit 1 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | PICtail™ Plus | |
| Part Status | Active | |
| Main Purpose | Memory, Flash | |
| Embedded | - | |
| Utilized IC / Part | SST25VF016B, SST25VF064C, SST26VF032 | |
| Primary Attributes | PICtail™ Plus Expansion Connector | |
| Secondary Attributes | Headers for Access to Each IC | |
| Supplied Contents | 3 Boards | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AC243005-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AC243005-1 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of AC243005-1 is new and unused, you can buy AC243005-1 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AC243005-1.
