| Manufacturer Part Number: | AC164128 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

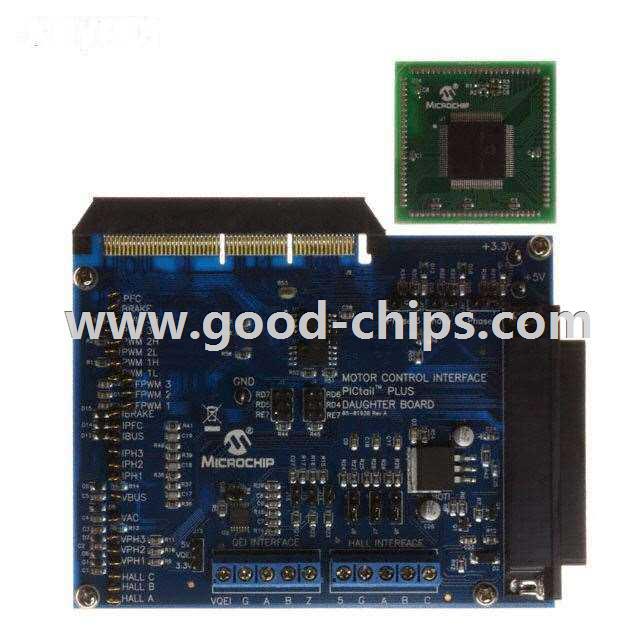

| Description: | DM240001, dsPIC33F PICtail™ Series Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AC164128 Datasheet |
| Internal Part Number | 898-AC164128 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | PICtail™ Plus Motor Control Daughter Card | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | PICtail™ | |
| Part Status | Active | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | Yes, MCU, 16-Bit | |
| Utilized IC / Part | DM240001, dsPIC33F | |
| Primary Attributes | Brushless DC (BLDC) Motors, 3-Phase, 1A, LIN, SPI, PWM Interface | |
| Secondary Attributes | Explorer 16 Bridge Board | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AC164128 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AC164128 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of AC164128 is new and unused, you can buy AC164128 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AC164128.
