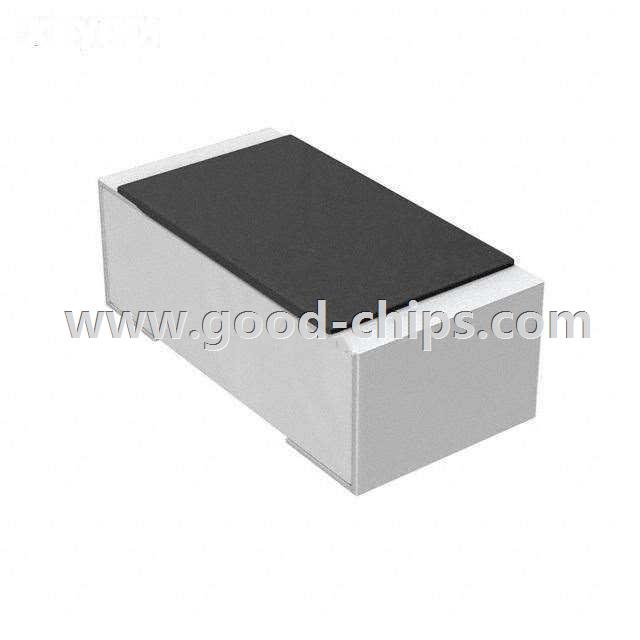

| Manufacturer Part Number: | AC0402JR-07680RL |
|---|---|
| Manufacturer: | Yageo |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 19010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 680 OHM 5% 1/16W 0402 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AC0402JR-07680RL Datasheet |
| Internal Part Number | 898-AC0402JR-07680RL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AC Series Automotive Grade Chip Resistors | |
| Online Catalog | AC Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Yageo | |
| Series | AC | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 680 | |
| Tolerance | ±5% | |
| Power (Watts) | 0.063W, 1/16W | |
| Composition | Thick Film | |
| Features | Automotive AEC-Q200, Moisture Resistant | |
| Temperature Coefficient | ±100ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | 0402 (1005 Metric) | |
| Supplier Device Package | 0402 | |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
| Height | 0.015" (0.37mm) | |
| Number of Terminations | 2 | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AC0402JR-07680RL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AC0402JR-07680RL is in stock for immediate shipping now. We are the distributor of Yageo all series components. The condition of AC0402JR-07680RL is new and unused, you can buy AC0402JR-07680RL Yageo with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AC0402JR-07680RL.
