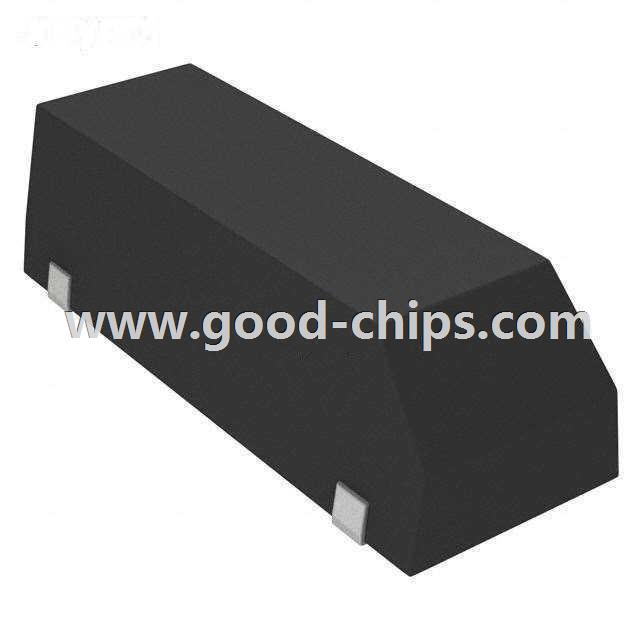

Manufacturer Part Number: | ABSM2-25.000MHZ-4-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Crystals |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 25MHz ±30ppm Crystal 18pF 50 Ohm -10°C ~ 60°C Surface Mount 4-SOJ, 9.40mm pitch |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ABSM2-25.000MHZ-4-T Datasheet |
Internal Part Number | 898-ABSM2-25.000MHZ-4-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | ABSM2.pdf ABSM2.stp | |
PCN Obsolescence/ EOL | ABSM2 Series 30/Sep/2014 | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | Abracon LLC | |
Series | ABSM2 | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | MHz Crystal | |
Frequency | 25MHz | |
Frequency Stability | ±50ppm | |
Frequency Tolerance | ±30ppm | |
Load Capacitance | 18pF | |
ESR (Equivalent Series Resistance) | 50 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -10°C ~ 60°C | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 4-SOJ, 9.40mm pitch | |
Size / Dimension | 0.492" L x 0.181" W (12.50mm x 4.60mm) | |
Height | 0.146" (3.70mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ABSM2-25.000MHZ-4-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ABSM2-25.000MHZ-4-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ABSM2-25.000MHZ-4-T is new and unused, you can buy ABSM2-25.000MHZ-4-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ABSM2-25.000MHZ-4-T.
