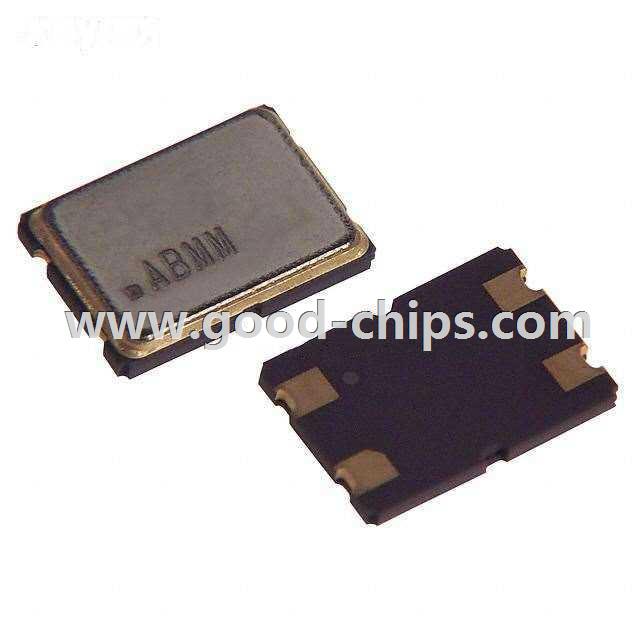

Manufacturer Part Number: | ABMM-16.9344MHZ-B2-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Crystals |
Available Quantity: | 11770 Pieces |
Unit Price: | Quote by Email |
Description: | 16.9344MHz ±20ppm Crystal 18pF 50 Ohm -20°C ~ 70°C Surface Mount 4-SMD, No Lead (DFN, LCC) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ABMM-16.9344MHZ-B2-T Datasheet |
Internal Part Number | 898-ABMM-16.9344MHZ-B2-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | ABMM-Series RoHS Compliance | |
3D Model | ABMM.pdf ABMM.stp | |
Online Catalog | ABMM Series | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | Abracon LLC | |
Series | ABMM | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Type | MHz Crystal | |
Frequency | 16.9344MHz | |
Frequency Stability | ±50ppm | |
Frequency Tolerance | ±20ppm | |
Load Capacitance | 18pF | |
ESR (Equivalent Series Resistance) | 50 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -20°C ~ 70°C | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height | 0.051" (1.30mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ABMM-16.9344MHZ-B2-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ABMM-16.9344MHZ-B2-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ABMM-16.9344MHZ-B2-T is new and unused, you can buy ABMM-16.9344MHZ-B2-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ABMM-16.9344MHZ-B2-T.
