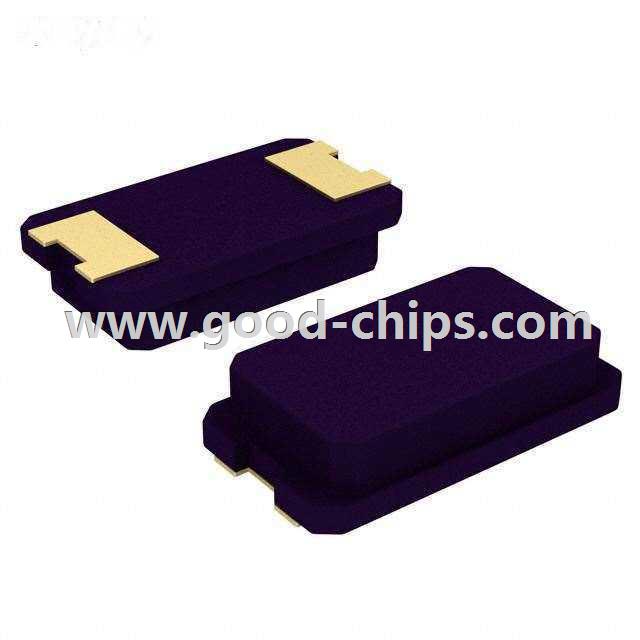

Manufacturer Part Number: | ABM7-18.432MHZ-D2Y-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Crystals |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |
Description: | 18.432MHz ±20ppm Crystal 18pF 50 Ohm -40°C ~ 85°C Surface Mount 2-SMD, No Lead (DFN, LCC) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ABM7-18.432MHZ-D2Y-T Datasheet |
Internal Part Number | 898-ABM7-18.432MHZ-D2Y-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | ABM7 and ABM11 Crystals | |
3D Model | ABM7.pdf ABM7.stp | |
PCN Obsolescence/ EOL | ABM7 Series 14/May/2015 ABM7 Series 24/Jul/2015 | |
Online Catalog | ABM7 Series | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | Abracon LLC | |
Series | ABM7 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | MHz Crystal | |
Frequency | 18.432MHz | |
Frequency Stability | ±30ppm | |
Frequency Tolerance | ±20ppm | |
Load Capacitance | 18pF | |
ESR (Equivalent Series Resistance) | 50 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.236" L x 0.138" W (6.00mm x 3.50mm) | |
Height | 0.055" (1.40mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ABM7-18.432MHZ-D2Y-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ABM7-18.432MHZ-D2Y-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ABM7-18.432MHZ-D2Y-T is new and unused, you can buy ABM7-18.432MHZ-D2Y-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ABM7-18.432MHZ-D2Y-T.
