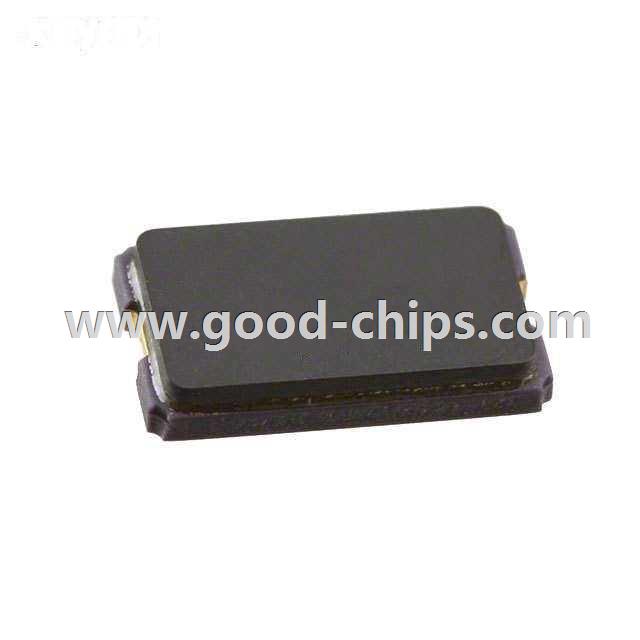

Manufacturer Part Number: | ABM2-8.192MHZ-D4Y-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Crystals |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 8.192MHz ±30ppm Crystal 18pF 100 Ohm -40°C ~ 85°C Surface Mount 2-SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ABM2-8.192MHZ-D4Y-T Datasheet |
Internal Part Number | 898-ABM2-8.192MHZ-D4Y-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | ABM2.pdf ABM2.stp | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | Abracon LLC | |
Series | ABM2 | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | MHz Crystal | |
Frequency | 8.192MHz | |
Frequency Stability | ±30ppm | |
Frequency Tolerance | ±30ppm | |
Load Capacitance | 18pF | |
ESR (Equivalent Series Resistance) | 100 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD | |
Size / Dimension | 0.315" L x 0.177" W (8.00mm x 4.50mm) | |
Height | 0.063" (1.60mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ABM2-8.192MHZ-D4Y-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ABM2-8.192MHZ-D4Y-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ABM2-8.192MHZ-D4Y-T is new and unused, you can buy ABM2-8.192MHZ-D4Y-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ABM2-8.192MHZ-D4Y-T.
