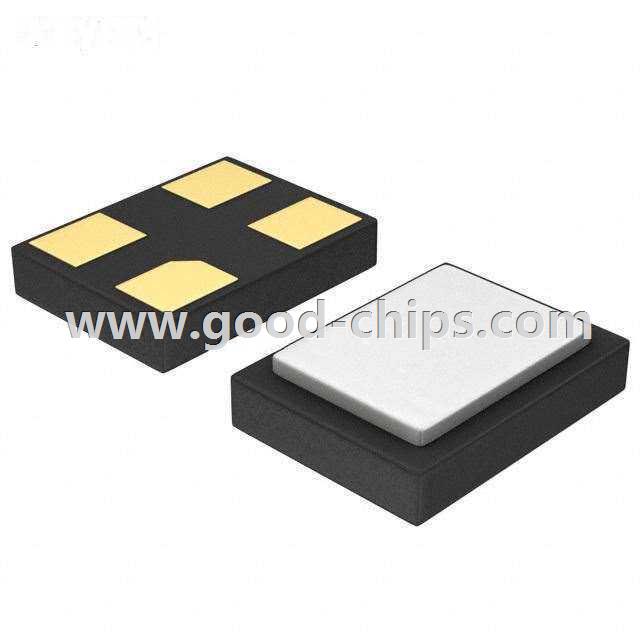

| Manufacturer Part Number: | ABM12-28.63636MHZ-B2X-T3 |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Crystals |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 28.63636MHz ±20ppm Crystal 8pF 200 Ohm -20°C ~ 70°C Surface Mount 4-SMD, No Lead (DFN, LCC) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ABM12-28.63636MHZ-B2X-T3 Datasheet |
| Internal Part Number | 898-ABM12-28.63636MHZ-B2X-T3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ABM12.pdf ABM12.stp | |
| Category | Crystals and Oscillators | |
| Family | Crystals | |
| Manufacturer | Abracon LLC | |
| Series | ABM12 | |
| Packaging | Digi-Reel® | |
| Part Status | Discontinued | |
| Type | MHz Crystal | |
| Frequency | 28.63636MHz | |
| Frequency Stability | ±20ppm | |
| Frequency Tolerance | ±20ppm | |
| Load Capacitance | 8pF | |
| ESR (Equivalent Series Resistance) | 200 Ohm | |
| Operating Mode | Fundamental | |
| Operating Temperature | -20°C ~ 70°C | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Size / Dimension | 0.063" L x 0.047" W (1.60mm x 1.20mm) | |
| Height | 0.018" (0.45mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ABM12-28.63636MHZ-B2X-T3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ABM12-28.63636MHZ-B2X-T3 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ABM12-28.63636MHZ-B2X-T3 is new and unused, you can buy ABM12-28.63636MHZ-B2X-T3 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ABM12-28.63636MHZ-B2X-T3.
