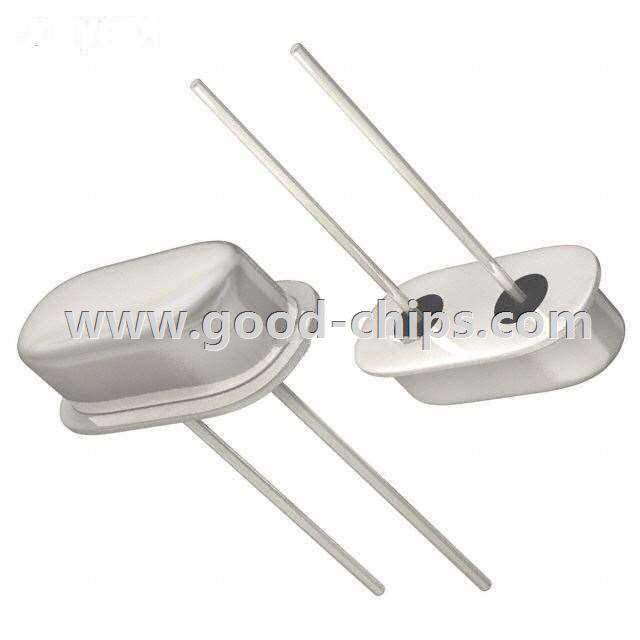

Manufacturer Part Number: | ABL-15.360MHZ-B4Y-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Crystals |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 15.36MHz ±30ppm Crystal 18pF 50 Ohm -20°C ~ 70°C Through Hole HC49/US |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ABL-15.360MHZ-B4Y-T Datasheet |
Internal Part Number | 898-ABL-15.360MHZ-B4Y-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | ABL.pdf ABL.stp | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | Abracon LLC | |
Series | ABL | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | MHz Crystal | |
Frequency | 15.36MHz | |
Frequency Stability | ±30ppm | |
Frequency Tolerance | ±30ppm | |
Load Capacitance | 18pF | |
ESR (Equivalent Series Resistance) | 50 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -20°C ~ 70°C | |
Ratings | - | |
Mounting Type | Through Hole | |
Package / Case | HC49/US | |
Size / Dimension | 0.453" L x 0.197" W (11.50mm x 5.00mm) | |
Height | 0.138" (3.50mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ABL-15.360MHZ-B4Y-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ABL-15.360MHZ-B4Y-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ABL-15.360MHZ-B4Y-T is new and unused, you can buy ABL-15.360MHZ-B4Y-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ABL-15.360MHZ-B4Y-T.
