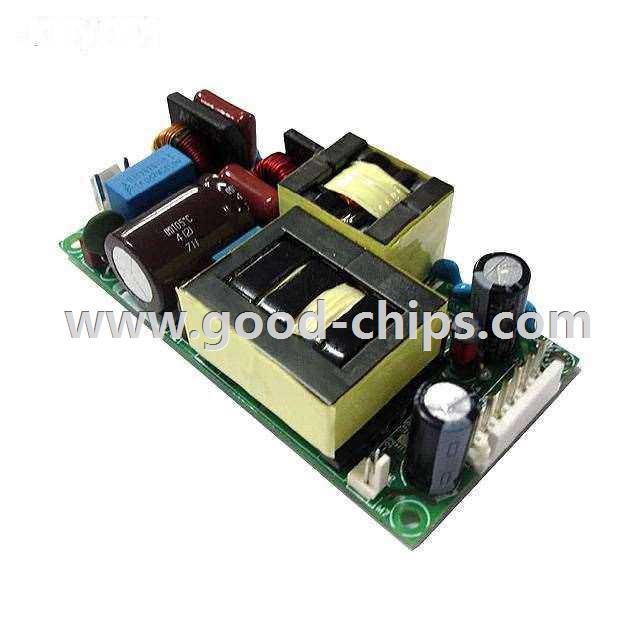

Manufacturer Part Number: | ABC225-1T48L |
---|---|
Manufacturer: | Bel Power Solutions |
Product Category: | AC DC Converters |
Available Quantity: | 9033 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 48V 113W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ABC225-1T48L Datasheet |
Internal Part Number | 898-ABC225-1T48L | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | ABC Series Power Supplies ABC600 Series Open Frame Power Supplies ABC/MBC Low-Profile Series Power Supplies Power Solutions and Protection | |
Online Catalog | ABC225 Series | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | Bel Power Solutions | |
Series | ABC225 | |
Part Status | Active | |
Type | Open Frame | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 48V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 2.34A | |
Power (Watts) | 113W (225W Forced Air) | |
Applications | ITE (Commercial) | |
Voltage - Isolation | 3kV (3000V) | |
Efficiency | 94% | |
Operating Temperature | -40°C ~ 70°C (With Derating) | |
Features | DC Input Capable, PFC, Standby Output, Universal Input | |
Mounting Type | Chassis Mount | |
Size / Dimension | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | |
Minimum Load Required | No | |
Approvals | CE | |
Power (Watts) - Max | 113W (225W Forced Air) | |
Standard Package | 72 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ABC225-1T48L | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ABC225-1T48L is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of ABC225-1T48L is new and unused, you can buy ABC225-1T48L Bel Power Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ABC225-1T48L.
