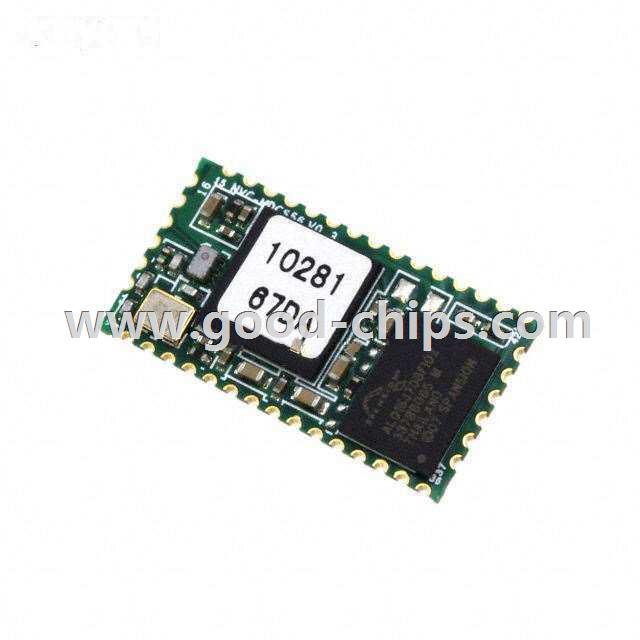

.jpg)
| Manufacturer Part Number: | ABBTM-NVC-MDCS56 |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9053 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE BLUETOOTH |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ABBTM-NVC-MDCS56 Datasheet |
| Internal Part Number | 898-ABBTM-NVC-MDCS56 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| 3D Model | ABBTM-NVC-MDCS56.stp ABBTM-NVC-MDCS56.pdf | |
| Online Catalog | ABBTM-NVC-MDCS56 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Abracon LLC | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| RF Family/Standard | Bluetooth | |
| Protocol | Bluetooth v2.1 + EDR | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate | - | |
| Power - Output | 4dBm | |
| Sensitivity | -86dBm | |
| Serial Interfaces | I²C, UART | |
| Antenna Type | Not Included | |
| Memory Size | 16MB Flash | |
| Voltage - Supply | 2.7 V ~ 3.6 V | |
| Current - Receiving | - | |
| Current - Transmitting | - | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ABBTM-NVC-MDCS56 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ABBTM-NVC-MDCS56 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ABBTM-NVC-MDCS56 is new and unused, you can buy ABBTM-NVC-MDCS56 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ABBTM-NVC-MDCS56.
