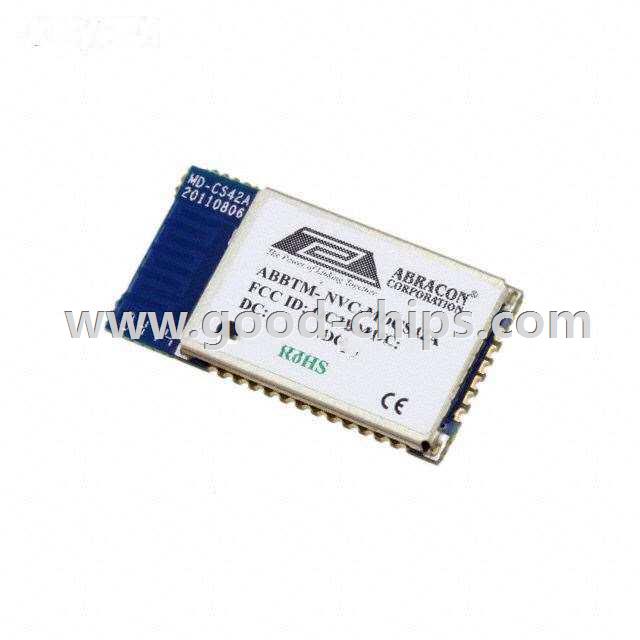

Manufacturer Part Number: | ABBTM-NVC-MDCS42A |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9057 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MOD BLUETOOTH TRACE ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ABBTM-NVC-MDCS42A Datasheet |
Internal Part Number | 898-ABBTM-NVC-MDCS42A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
3D Model | ABBTM-NVC-MDCS42A.stp ABBTM-NVC-MDCS42A.pdf | |
Online Catalog | ABBTM-NVC-MDCS42A | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Abracon LLC | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
RF Family/Standard | Bluetooth | |
Protocol | Bluetooth v2.1 + EDR | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | - | |
Power - Output | 4dBm | |
Sensitivity | -84dBm | |
Serial Interfaces | I²C, UART, USB | |
Antenna Type | Integrated, Trace | |
Memory Size | 8MB Flash | |
Voltage - Supply | 2.7 V ~ 3.7 V | |
Current - Receiving | - | |
Current - Transmitting | - | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | - | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ABBTM-NVC-MDCS42A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ABBTM-NVC-MDCS42A is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ABBTM-NVC-MDCS42A is new and unused, you can buy ABBTM-NVC-MDCS42A Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ABBTM-NVC-MDCS42A.
