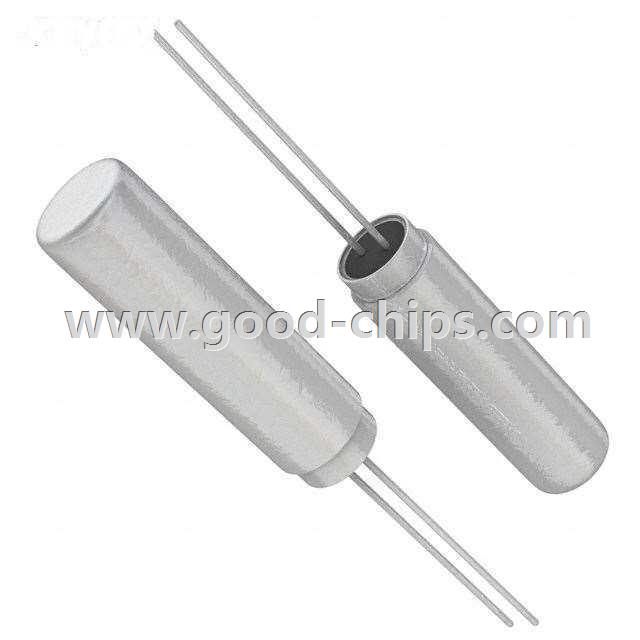

Manufacturer Part Number: | AB15T-32.768KHZ |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Crystals |
Available Quantity: | 9848 Pieces |
Unit Price: | Quote by Email |
Description: | 32.768kHz ±20ppm Crystal 12.5pF 40 kOhm -20°C ~ 70°C Through Hole Cylindrical Can, Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AB15T-32.768KHZ Datasheet |
Internal Part Number | 898-AB15T-32.768KHZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Tuning Fork Crystals and Oscillators | |
3D Model | AB15T.pdf AB15T.stp | |
Online Catalog | AB15T, AB26T and AB38T Series | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | Abracon LLC | |
Series | AB15T | |
Packaging | Bulk | |
Part Status | Active | |
Type | kHz Crystal (Tuning Fork) | |
Frequency | 32.768kHz | |
Frequency Stability | - | |
Frequency Tolerance | ±20ppm | |
Load Capacitance | 12.5pF | |
ESR (Equivalent Series Resistance) | 40 kOhm | |
Operating Mode | Fundamental | |
Operating Temperature | -20°C ~ 70°C | |
Ratings | - | |
Mounting Type | Through Hole | |
Package / Case | Cylindrical Can, Radial | |
Size / Dimension | 0.055" Dia x 0.197" L (1.40mm x 5.00mm) | |
Height | 0.201" (5.10mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AB15T-32.768KHZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AB15T-32.768KHZ is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AB15T-32.768KHZ is new and unused, you can buy AB15T-32.768KHZ Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AB15T-32.768KHZ.
