Manufacturer Part Number: | AB-557-03-HCC-F-L-C-T3 |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Clock/Timing - Application Specific |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC PCIE CLOCK GEN 100MHZ 14QFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AB-557-03-HCC-F-L-C-T3 Datasheet |
Internal Part Number | 898-AB-557-03-HCC-F-L-C-T3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AB-557-03.pdf AB-557-03.stp | |
Category | Integrated Circuits (ICs) | |
Family | Clock/Timing - Application Specific | |
Manufacturer | Abracon LLC | |
Series | Pure Silicon™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
PLL | Yes | |
Main Purpose | PCI Express (PCIe), Clock Generator | |
Input | - | |
Output | HCSL, LVCMOS | |
Number of Circuits | 1 | |
Ratio - Input:Output | 0:2 | |
Differential - Input:Output | No/Yes | |
Frequency - Max | 460MHz | |
Voltage - Supply | 2.25 V ~ 3.6 V | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

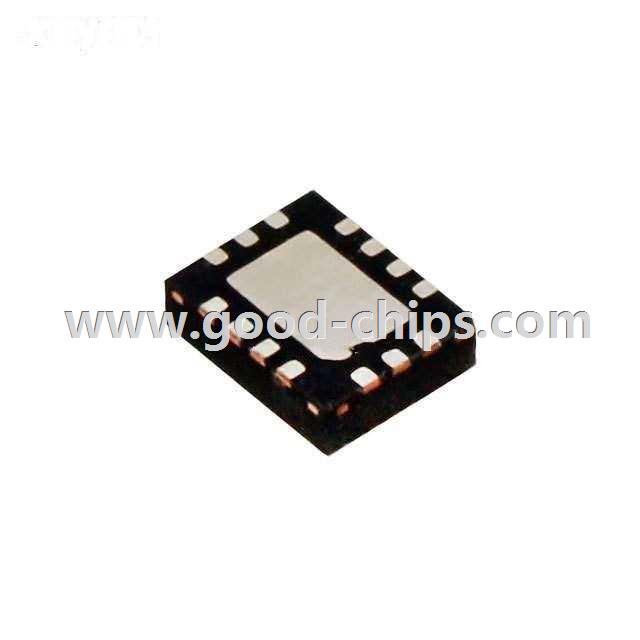

Package / Case | 14-VFQFN Exposed Pad | |
Supplier Device Package | 14-QFN (3.2x2.5) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AB-557-03-HCC-F-L-C-T3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AB-557-03-HCC-F-L-C-T3 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AB-557-03-HCC-F-L-C-T3 is new and unused, you can buy AB-557-03-HCC-F-L-C-T3 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AB-557-03-HCC-F-L-C-T3.
