Manufacturer Part Number: | AB-14.7456MHZ-B2-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Crystals |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

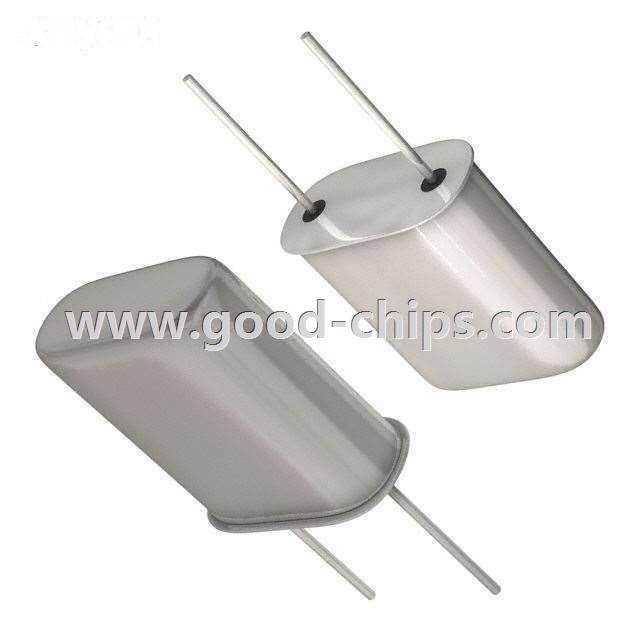

Description: | 14.7456MHz ±20ppm Crystal 18pF 25 Ohm -20°C ~ 70°C Through Hole HC49/U |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AB-14.7456MHZ-B2-T Datasheet |
Internal Part Number | 898-AB-14.7456MHZ-B2-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AB-HC49U.stp AB-HC49U.pdf | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | Abracon LLC | |
Series | AB | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | MHz Crystal | |
Frequency | 14.7456MHz | |
Frequency Stability | ±100ppm | |
Frequency Tolerance | ±20ppm | |
Load Capacitance | 18pF | |
ESR (Equivalent Series Resistance) | 25 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -20°C ~ 70°C | |
Ratings | - | |
Mounting Type | Through Hole | |
Package / Case | HC49/U | |
Size / Dimension | 0.453" L x 0.197" W (11.50mm x 5.00mm) | |
Height | 0.530" (13.46mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AB-14.7456MHZ-B2-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AB-14.7456MHZ-B2-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AB-14.7456MHZ-B2-T is new and unused, you can buy AB-14.7456MHZ-B2-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AB-14.7456MHZ-B2-T.
