Manufacturer Part Number: | AAD1-9090SE9ZC/2 |
---|---|
Manufacturer: | Kingbright |
Product Category: | LED Lighting - Color |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

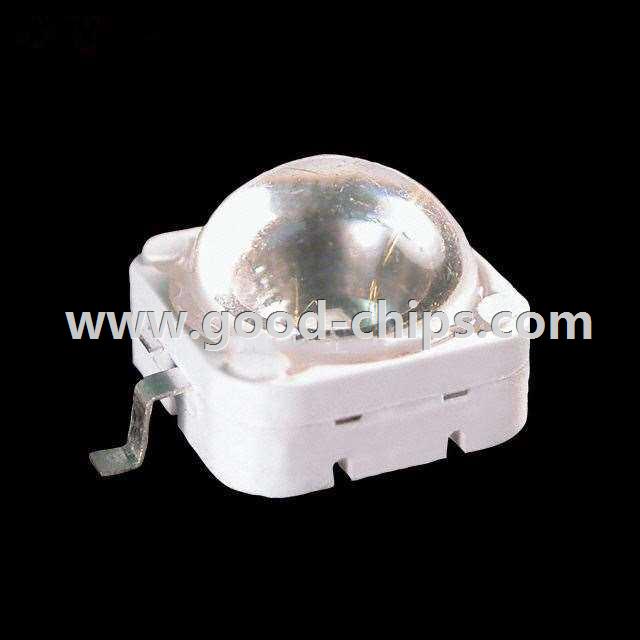

Description: | LED Lighting Color AAD1-9090 Red 623nm (Typ) 2-SMD, Gull Wing, Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AAD1-9090SE9ZC/2 Datasheet |
Internal Part Number | 898-AAD1-9090SE9ZC/2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Featured Product | Mid-High Power LEDs | |
Category | Optoelectronics | |
Family | LED Lighting - Color | |
Manufacturer | Kingbright | |
Series | AAD1-9090 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Color | Red | |
Wavelength | 623nm (Typ) | |
Current - Test | 500mA | |
Voltage - Forward (Vf) (Typ) | 2.7V | |
Lumens/Watt @ Current - Test | 37 lm/W | |
Current - Max | 500mA | |
Flux @ Current/Temperature - Test | 50 lm (Typ) | |
Temperature - Test | 25°C | |
Viewing Angle | 100° | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD, Gull Wing, Exposed Pad | |
Thermal Resistance of Package | 12°C/W | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AAD1-9090SE9ZC/2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AAD1-9090SE9ZC/2 is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of AAD1-9090SE9ZC/2 is new and unused, you can buy AAD1-9090SE9ZC/2 Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AAD1-9090SE9ZC/2.
