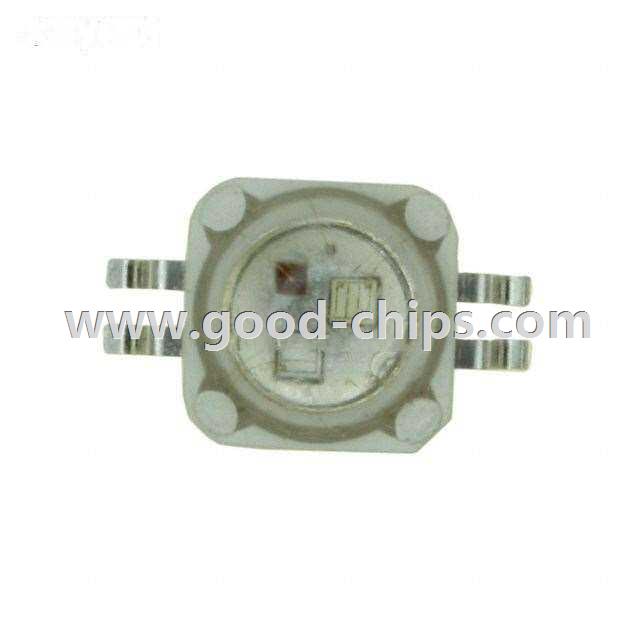

| Manufacturer Part Number: | AAD1-9090BRGC-01/3 |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Lighting - Color |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting Color AAD1-9090 Red, Green, Blue (RGB) 625nm Red, 530nm Green, 458nm Blue 4-SMD, J-Lead Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AAD1-9090BRGC-01/3 Datasheet |
| Internal Part Number | 898-AAD1-9090BRGC-01/3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Featured Product | Mid-High Power LEDs | |
| Category | Optoelectronics | |
| Family | LED Lighting - Color | |
| Manufacturer | Kingbright | |
| Series | AAD1-9090 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Red, Green, Blue (RGB) | |
| Wavelength | 625nm Red, 530nm Green, 458nm Blue | |
| Current - Test | 350mA Red, 350mA Green, 350mA Blue | |
| Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.3V Green, 3.2V Blue | |
| Lumens/Watt @ Current - Test | 34 lm/W Red, 43 lm/W Green, 18 lm/W Blue | |
| Current - Max | 350mA Red, 350mA Green, 350mA Blue | |
| Flux @ Current/Temperature - Test | 30 lm Red, 50 lm Green, 20 lm Blue | |
| Temperature - Test | 25°C | |
| Viewing Angle | 135° | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, J-Lead Exposed Pad | |
| Thermal Resistance of Package | 12°C/W Red, 9°C/W Green, 9°C/W Blue | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AAD1-9090BRGC-01/3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AAD1-9090BRGC-01/3 is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of AAD1-9090BRGC-01/3 is new and unused, you can buy AAD1-9090BRGC-01/3 Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AAD1-9090BRGC-01/3.
