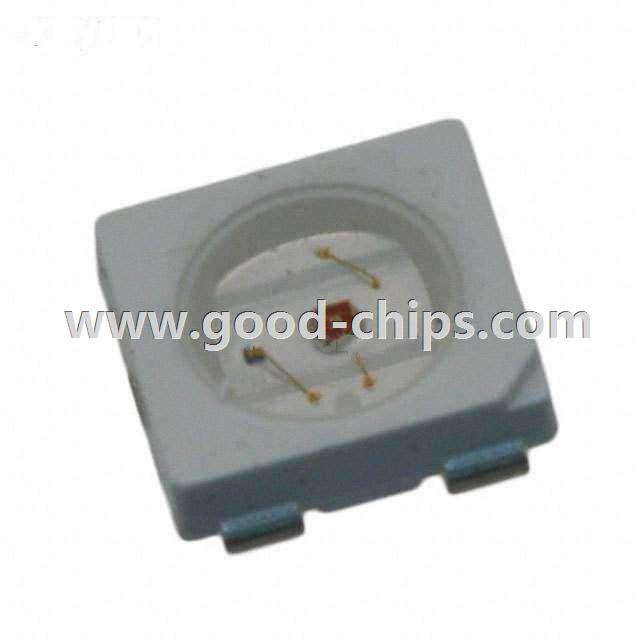

| Manufacturer Part Number: | AA3535SEL1Z1S |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Lighting - Color |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting Color AA3535 Orange 618nm (Typ) 4-SMD, J-Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AA3535SEL1Z1S Datasheet |
| Internal Part Number | 898-AA3535SEL1Z1S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Featured Product | AA3535 Series - SMD LEDs | |
| 3D Model | AA3535.igs AA3535.pro AA3535.sldprt AA3535.stp | |
| Category | Optoelectronics | |
| Family | LED Lighting - Color | |
| Manufacturer | Kingbright | |
| Series | AA3535 | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| Color | Orange | |
| Wavelength | 618nm (Typ) | |
| Current - Test | 150mA | |
| Voltage - Forward (Vf) (Typ) | 2.9V | |
| Lumens/Watt @ Current - Test | 25 lm/W | |
| Current - Max | 150mA | |
| Flux @ Current/Temperature - Test | 11 lm (Typ) | |
| Temperature - Test | 25°C | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, J-Lead | |
| Thermal Resistance of Package | 100°C/W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AA3535SEL1Z1S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AA3535SEL1Z1S is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of AA3535SEL1Z1S is new and unused, you can buy AA3535SEL1Z1S Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AA3535SEL1Z1S.
