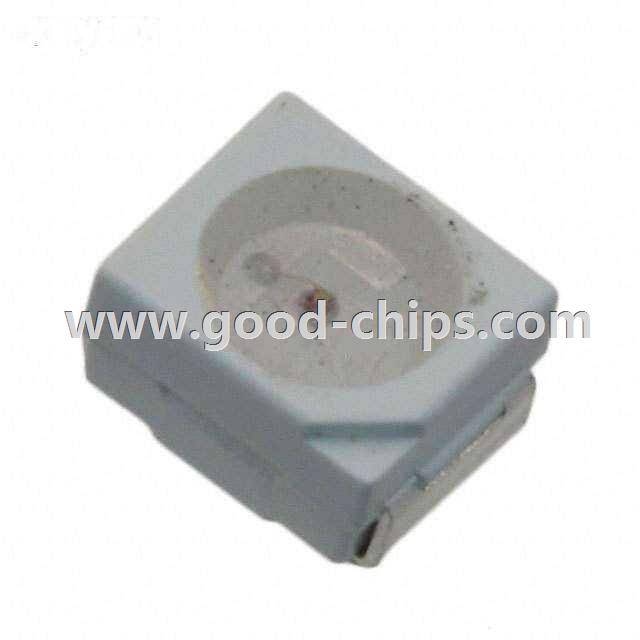

Manufacturer Part Number: | AA3528F3S |
---|---|
Manufacturer: | Kingbright |
Product Category: | Infrared, UV, Visible Emitters |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |
Description: | Infrared (IR) Emitter 940nm 1.2V 50mA 1.6mW/sr @ 20mA 120° 2-PLCC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AA3528F3S Datasheet |
Internal Part Number | 898-AA3528F3S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AA3528x.sldprt AA3528x.pro AA3528x.igs AA3528x.stp | |
Online Catalog | AA3528F3S | |
Category | Optoelectronics | |
Family | Infrared, UV, Visible Emitters | |
Manufacturer | Kingbright | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Infrared (IR) | |
Current - DC Forward (If) (Max) | 50mA | |
Radiant Intensity (Ie) Min @ If | 1.6mW/sr @ 20mA | |
Wavelength | 940nm | |
Voltage - Forward (Vf) (Typ) | 1.2V | |
Viewing Angle | 120° | |
Orientation | Top View | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |
Package / Case | 2-PLCC | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AA3528F3S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AA3528F3S is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of AA3528F3S is new and unused, you can buy AA3528F3S Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AA3528F3S.
