| Manufacturer Part Number: | AA2810ASES/J3 |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 31010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 625nm LED Indication - Discrete 2.2V 2-SMD, J-Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AA2810ASES/J3 Datasheet |
| Internal Part Number | 898-AA2810ASES/J3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AA2810A.igs AA2810A.pro AA2810A.sldprt AA2810A.stp | |
| Online Catalog | Right Angle Rectangle with Flat Top 2-SMD J-Lead Package Chip LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 550mcd | |
| Lens Style/Size | Rectangle with Flat Top, 2.30mm x 0.57mm | |
| Voltage - Forward (Vf) (Typ) | 2.2V | |
| Current - Test | 20mA | |
| Viewing Angle | 110° | |
| Mounting Type | Surface Mount, Right Angle | |
| Wavelength - Dominant | 625nm | |
| Wavelength - Peak | 640nm | |
| Features | - | |

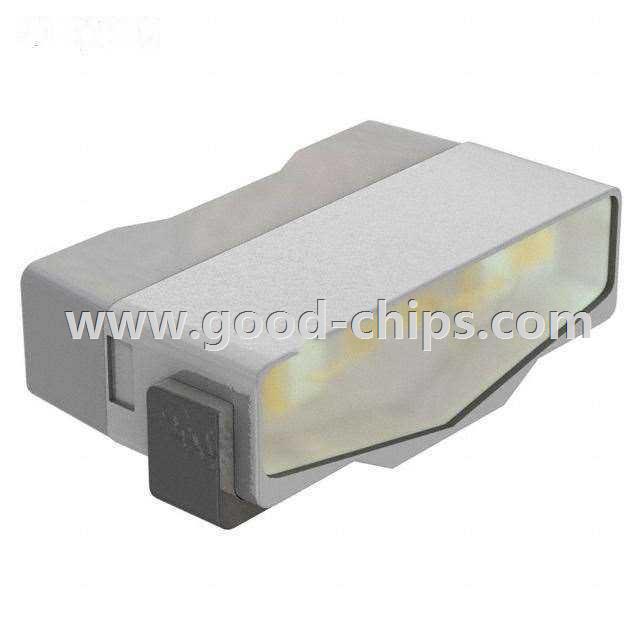

| Package / Case | 2-SMD, J-Lead | |
| Supplier Device Package | Chip LED | |
| Size / Dimension | 2.80mm L x 1.20mm W | |
| Height (Max) | 0.80mm | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AA2810ASES/J3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AA2810ASES/J3 is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of AA2810ASES/J3 is new and unused, you can buy AA2810ASES/J3 Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AA2810ASES/J3.
