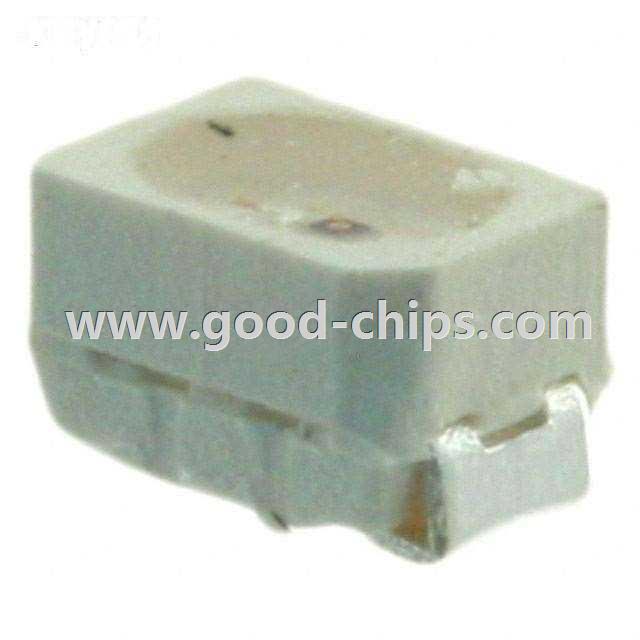

| Manufacturer Part Number: | AA2214SESK |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Orange 601nm LED Indication - Discrete 2.1V 2-SMD, J-Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AA2214SESK Datasheet |
| Internal Part Number | 898-AA2214SESK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AA2214x.sldprt AA2214x.pro AA2214x.igs AA2214x.stp | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Orange | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 180mcd | |
| Lens Style/Size | Oval with Flat Top, 1.65mm x 1.15mm | |
| Voltage - Forward (Vf) (Typ) | 2.1V | |
| Current - Test | 20mA | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 601nm | |
| Wavelength - Peak | 610nm | |
| Features | - | |
| Package / Case | 2-SMD, J-Lead | |
| Supplier Device Package | SMD | |
| Size / Dimension | 2.20mm L x 1.40mm W | |
| Height (Max) | 1.30mm | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AA2214SESK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AA2214SESK is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of AA2214SESK is new and unused, you can buy AA2214SESK Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AA2214SESK.
