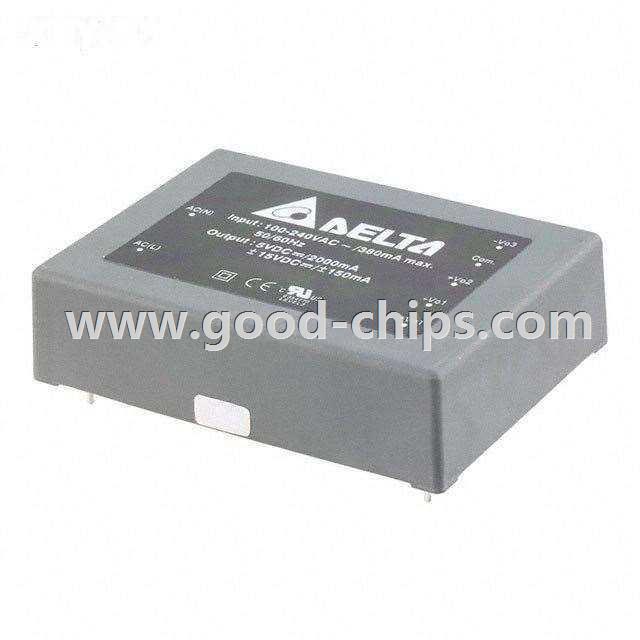

Manufacturer Part Number: | AA15T051515A |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | AC DC Converters |
Available Quantity: | 9029 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 5V +/-15V 15W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AA15T051515A Datasheet |
Internal Part Number | 898-AA15T051515A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | AA15D, AA15S and AA15T Series | |
Category | Power Supplies - Board Mount | |
Family | AC DC Converters | |
Manufacturer | Delta Electronics | |
Series | AA15T | |
Part Status | Active | |
Number of Outputs | 3 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 5V | |
Voltage - Output 2 | 15V | |
Voltage - Output 3 | -15V | |
Voltage - Output 4 | - | |
Current - Output (Max) | 2A, 150mA, 150mA | |
Power (Watts) | 15W | |
Power Supply Type | Switching (Closed Frame) | |
Applications | ITE (Commercial) | |
Features | OCP, OTP, OVP, SCP | |
Operating Temperature | -25°C ~ 70°C | |
Efficiency | 74% | |
Mounting Type | Through Hole | |
Size / Dimension | 2.91" L x 2.13" W x 0.77" H (74.0mm x 54.0mm x 19.5mm) | |
Power (Watts) - Max | 15W | |
Line Regulation | ±0.5% | |
Load Regulation | ±2.5% | |
Approvals | CE, cUL, UL | |
Weight | 0.001 KG | |
Standard Package | 60 | |
Application | Email for details | |
Replacement Part | AA15T051515A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AA15T051515A is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of AA15T051515A is new and unused, you can buy AA15T051515A Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AA15T051515A.
