| Manufacturer Part Number: | A8504952S22A |
|---|---|
| Manufacturer: | Amphenol PCD |
| Product Category: | Circular Connectors - Backshells and Cable Clamps |
| Available Quantity: | 9108 Pieces |
| Unit Price: | Quote by Email |

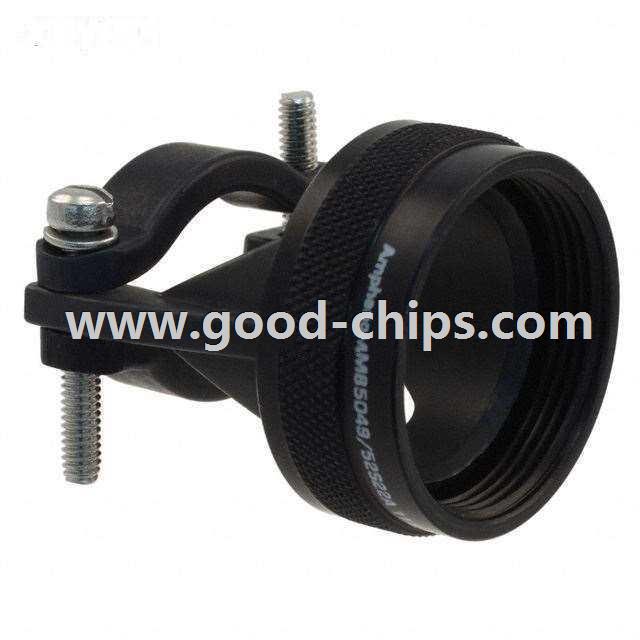

| Description: | Black Connector Cable Clamp 1 5/16-18 UNEF 22 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A8504952S22A Datasheet |
| Internal Part Number | 898-A8504952S22A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Plating Finishes | |
| Online Catalog | Amphenol PCD | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Backshells and Cable Clamps | |
| Manufacturer | Amphenol PCD | |
| Series | SAE AS85049 | |
| Part Status | Active | |
| Type | Cable Clamp | |
| Cable Opening | 0.640" ~ 0.960" (16.26mm ~ 24.38mm) | |
| Diameter - Outside | 1.760" (44.70mm) | |
| Shell Size - Insert | 22 | |
| Thread Size | 1 5/16-18 UNEF | |
| Cable Exit | 180° | |
| Material | Aluminum Alloy | |
| Plating | Anodized | |
| Shielding | - | |
| Color | Black | |
| Features | Clamp Screws, Self-Locking | |
| Ingress Protection | - | |
| Includes | - | |
| Material Flammability Rating | - | |
| For Use With/Related Products | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A8504952S22A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A8504952S22A is in stock for immediate shipping now. We are the distributor of Amphenol PCD all series components. The condition of A8504952S22A is new and unused, you can buy A8504952S22A Amphenol PCD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A8504952S22A.
