| Manufacturer Part Number: | A8504938S23N |
|---|---|
| Manufacturer: | Amphenol PCD |
| Product Category: | Circular Connectors - Backshells and Cable Clamps |
| Available Quantity: | 9024 Pieces |
| Unit Price: | Quote by Email |

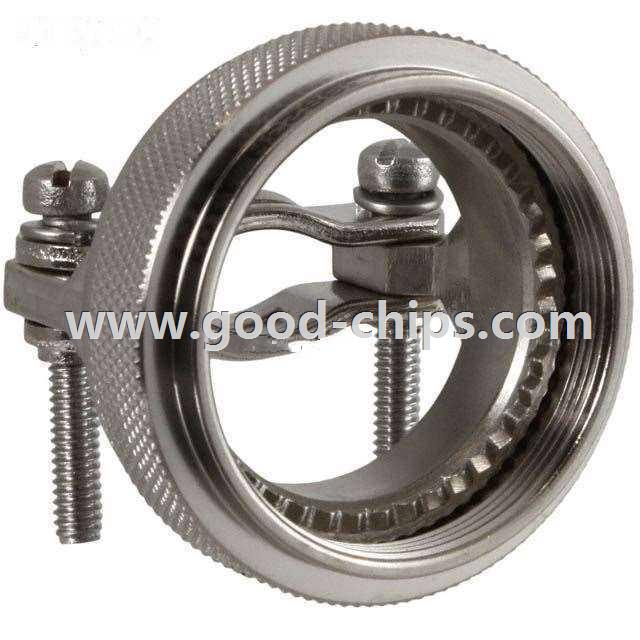

| Description: | Silver Connector Cable Clamp 23 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A8504938S23N Datasheet |
| Internal Part Number | 898-A8504938S23N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Plating Finishes | |
| Online Catalog | Amphenol PCD | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Backshells and Cable Clamps | |
| Manufacturer | Amphenol PCD | |
| Series | SAE AS85049 | |
| Part Status | Active | |
| Type | Cable Clamp | |
| Cable Opening | 0.380" ~ 0.820" (9.65mm ~ 20.83mm) | |
| Diameter - Outside | 1.770" (44.96mm) | |
| Shell Size - Insert | 23 | |
| Thread Size | - | |
| Cable Exit | 180° | |
| Material | Aluminum Alloy | |
| Plating | Electroless Nickel | |
| Shielding | - | |
| Color | Silver | |
| Features | Clamp Screws, Self-Locking | |
| Ingress Protection | - | |
| Includes | - | |
| Material Flammability Rating | - | |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A8504938S23N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A8504938S23N is in stock for immediate shipping now. We are the distributor of Amphenol PCD all series components. The condition of A8504938S23N is new and unused, you can buy A8504938S23N Amphenol PCD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A8504938S23N.
