| Manufacturer Part Number: | A8480EEJTR-T |
|---|---|
| Manufacturer: | Allegro MicroSystems, LLC |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) 1.5A (Switch) 10-TDFN/MLP (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A8480EEJTR-T Datasheet |
| Internal Part Number | 898-A8480EEJTR-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Allegro MicroSystems, LLC | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | DC DC Regulator | |
| Topology | Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 9V | |
| Voltage - Output | 23V | |
| Current - Output / Channel | 1.5A (Switch) | |
| Frequency | 1.2MHz | |
| Dimming | - | |
| Applications | Backlight, Camera Flash | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

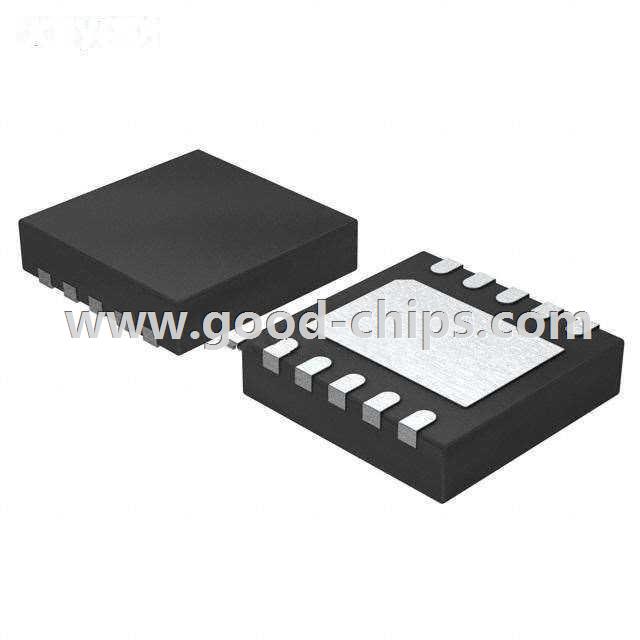

| Package / Case | 10-WFDFN Exposed Pad | |
| Supplier Device Package | 10-TDFN/MLP (3x3) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A8480EEJTR-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A8480EEJTR-T is in stock for immediate shipping now. We are the distributor of Allegro MicroSystems, LLC all series components. The condition of A8480EEJTR-T is new and unused, you can buy A8480EEJTR-T Allegro MicroSystems, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A8480EEJTR-T.
