| Manufacturer Part Number: | A3988SEVTR-T |
|---|---|
| Manufacturer: | Allegro MicroSystems, LLC |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Bipolar Motor Driver DMOS Parallel 36-QFN (6x6) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A3988SEVTR-T Datasheet |
| Internal Part Number | 898-A3988SEVTR-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Allegro MicroSystems, LLC | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not For New Designs | |
| Motor Type - Stepper | Bipolar | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (8) | |
| Interface | Parallel | |
| Technology | DMOS | |
| Step Resolution | 1, 1/2, 1/4 | |
| Applications | General Purpose | |
| Current - Output | 1.2A | |
| Voltage - Supply | 3 V ~ 5.5 V | |
| Voltage - Load | 8 V ~ 36 V | |
| Operating Temperature | -20°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

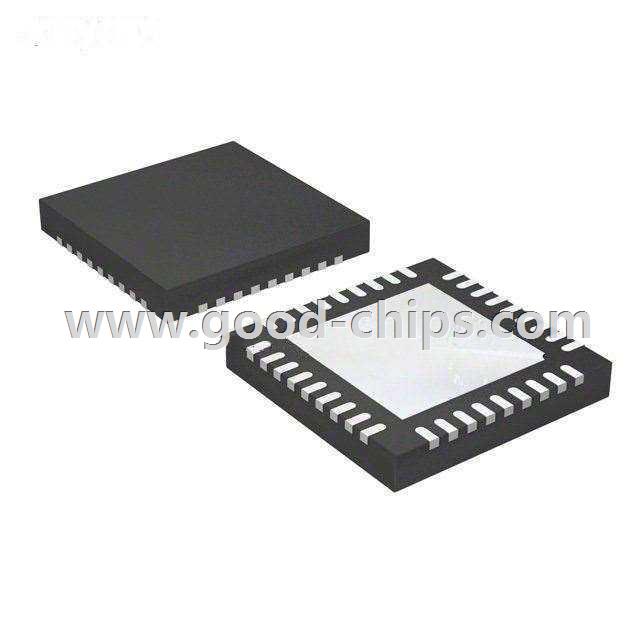

| Package / Case | 36-VFQFN Exposed Pad | |
| Supplier Device Package | 36-QFN (6x6) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A3988SEVTR-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A3988SEVTR-T is in stock for immediate shipping now. We are the distributor of Allegro MicroSystems, LLC all series components. The condition of A3988SEVTR-T is new and unused, you can buy A3988SEVTR-T Allegro MicroSystems, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A3988SEVTR-T.
