| Manufacturer Part Number: | A3958SB |
|---|---|
| Manufacturer: | Allegro MicroSystems, LLC |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver DMOS Serial 24-DIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A3958SB Datasheet |
| Internal Part Number | 898-A3958SB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Allegro MicroSystems, LLC | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (2) | |
| Interface | Serial | |
| Technology | DMOS | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | 2A | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Voltage - Load | 20 V ~ 50 V | |
| Operating Temperature | -20°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

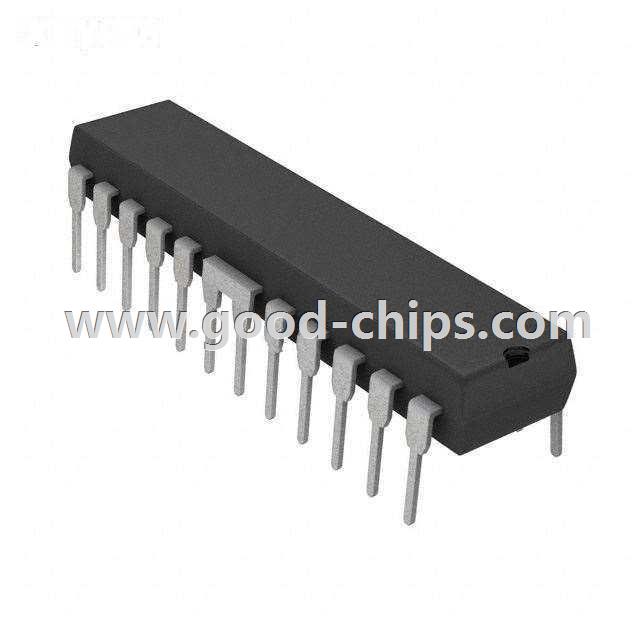

| Package / Case | 24-PowerDIP (0.300", 7.62mm) | |
| Supplier Device Package | 24-DIP | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A3958SB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A3958SB is in stock for immediate shipping now. We are the distributor of Allegro MicroSystems, LLC all series components. The condition of A3958SB is new and unused, you can buy A3958SB Allegro MicroSystems, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A3958SB.
