Manufacturer Part Number: | A20605RNCQ |
---|---|
Manufacturer: | C&K Components |
Product Category: | Rotary Switches |
Available Quantity: | 9485 Pieces |
Unit Price: | Quote by Email |

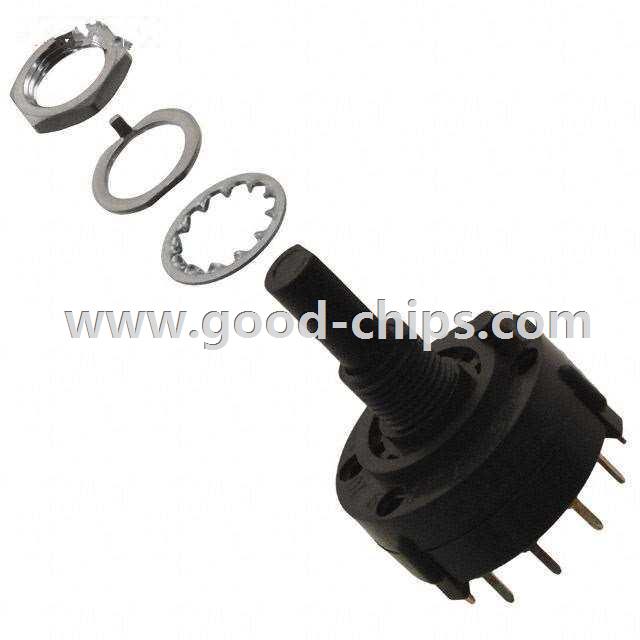

Description: | Rotary Switch 6 Position DP6T 2.5A (AC), 350mA (DC) 125VAC Panel Mount, Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | A20605RNCQ Datasheet |
Internal Part Number | 898-A20605RNCQ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Introduction to Electromechanical Switches | |
Online Catalog | A Series | |
Category | Switches | |
Family | Rotary Switches | |
Manufacturer | C&K Components | |
Series | A | |
Part Status | Active | |
Number of Positions | 6 | |
Index Stops | Fixed | |
Number of Decks | 1 | |
Number of Poles per Deck | 2 | |
Circuit per Deck | DP6T | |
Contact Timing | Non-Shorting (BBM) | |
Current Rating | 2.5A (AC), 350mA (DC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | 125V | |
Actuator Type | Flatted (6.35mm Dia) | |
Actuator Length | 12.70mm | |
Angle of Throw | 30° | |
Contact Material | Silver (Ag) | |
Contact Finish | Silver | |
Mounting Type | Panel Mount, Through Hole | |
Termination Style | PC Pin | |
Features | - | |
Depth Behind Panel | 14.48mm | |
Panel Cutout Dimensions | Circular - 9.80mm Dia | |
Operating Force, Torque | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | A20605RNCQ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
A20605RNCQ is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of A20605RNCQ is new and unused, you can buy A20605RNCQ C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A20605RNCQ.
