| Manufacturer Part Number: | A12405RNZB |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Rotary Switches |
| Available Quantity: | 9163 Pieces |
| Unit Price: | Quote by Email |

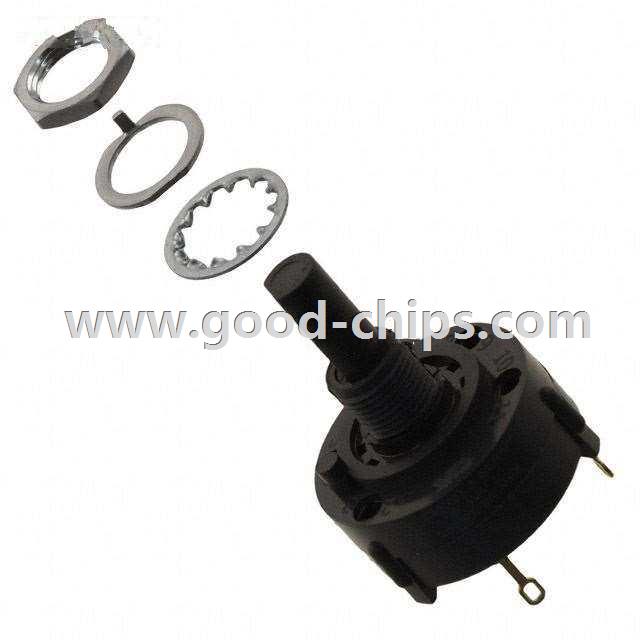

| Description: | Rotary Switch 4 Position SP4T 0.4VA (AC/DC) 20VAC Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A12405RNZB Datasheet |
| Internal Part Number | 898-A12405RNZB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| Online Catalog | A Series | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | C&K Components | |
| Series | A | |
| Part Status | Active | |
| Number of Positions | 4 | |
| Index Stops | Fixed | |
| Number of Decks | 1 | |
| Number of Poles per Deck | 1 | |
| Circuit per Deck | SP4T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Flatted (6.35mm Dia) | |
| Actuator Length | 12.70mm | |
| Angle of Throw | 90° | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | - | |
| Depth Behind Panel | 20.83mm | |
| Panel Cutout Dimensions | Circular - 9.80mm Dia | |
| Operating Force, Torque | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A12405RNZB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A12405RNZB is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of A12405RNZB is new and unused, you can buy A12405RNZB C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A12405RNZB.
