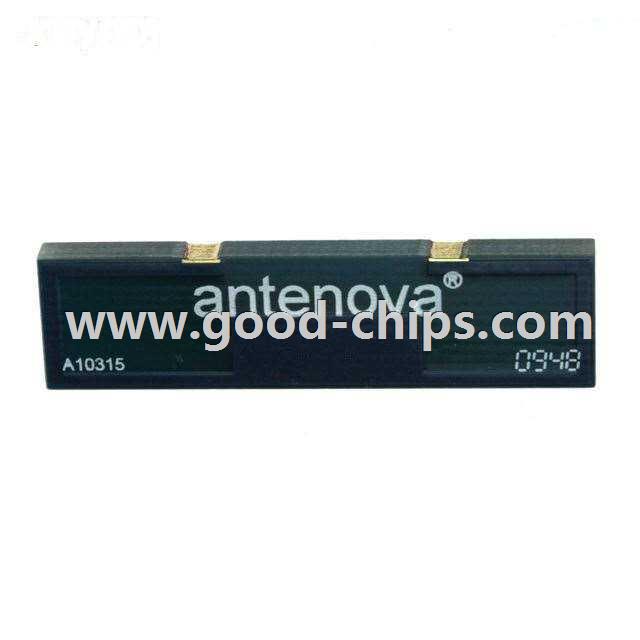

| Manufacturer Part Number: | A10315 |
|---|---|
| Manufacturer: | Antenova |
| Product Category: | RF Antennas |
| Available Quantity: | 46010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 850MHz, 900MHz, 1.8GHz, 1.9GHz GSM, UMTS PCB Trace RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 2dBi, 3.7dBi Solder Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A10315 Datasheet |
| Internal Part Number | 898-A10315 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Antenova - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Antenova | |
| Series | Reflexus | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Group | UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz) | |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | |
| Antenna Type | PCB Trace | |
| Number of Bands | 5 | |
| VSWR | 2.3 | |
| Return Loss | -8dB | |
| Gain | 2dBi, 3.7dBi | |
| Power - Max | - | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.126" (3.20mm) | |
| Applications | GSM, UMTS | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A10315 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A10315 is in stock for immediate shipping now. We are the distributor of Antenova all series components. The condition of A10315 is new and unused, you can buy A10315 Antenova with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A10315.
