Manufacturer Part Number: | A09-Y8NF |
---|---|
Manufacturer: | Digi International |
Product Category: | RF Antennas |
Available Quantity: | 9116 Pieces |
Unit Price: | Quote by Email |

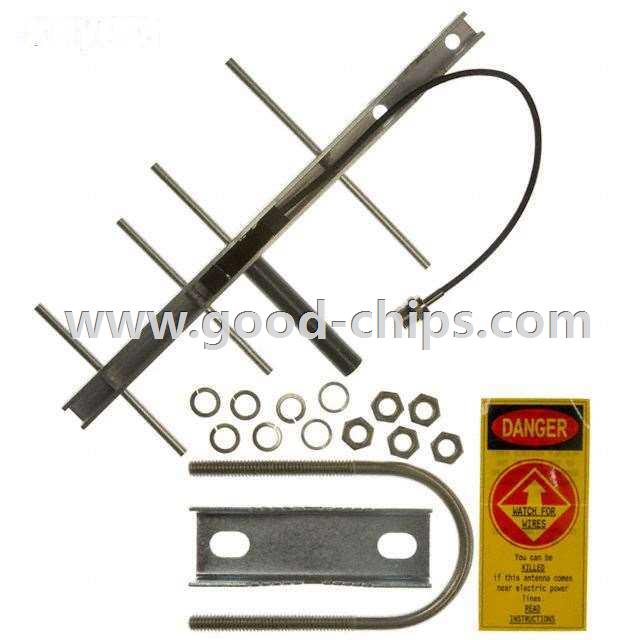

Description: | 938MHz Yagi, 4-Element RF Antenna 896MHz ~ 980MHz 8.15dBi Connector, N Female Bracket Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | A09-Y8NF Datasheet |
Internal Part Number | 898-A09-Y8NF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Antenna Design and Integration Fundamentals | |
Video File | Antenna Design: Custom vs Off-the-Shelf Antenna Design: Custom Antennas for Cellular Applications | |
RoHS Information | RoHS Declaration of Compliance | |
Design Resources | IoT Product Selector | |
Online Catalog | Digi International/Maxstream - External | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Digi International | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Frequency Group | UHF (300 MHz ~ 1 GHz) | |
Frequency (Center/Band) | 938MHz | |
Frequency Range | 896MHz ~ 980MHz | |
Antenna Type | Yagi, 4-Element | |
Number of Bands | 1 | |
VSWR | 1.5 | |
Return Loss | - | |
Gain | 8.15dBi | |
Power - Max | - | |
Features | - | |
Termination | Connector, N Female | |
Ingress Protection | - | |
Mounting Type | Bracket Mount | |
Height (Max) | 12.000" (304.80mm) | |
Applications | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | A09-Y8NF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
A09-Y8NF is in stock for immediate shipping now. We are the distributor of Digi International all series components. The condition of A09-Y8NF is new and unused, you can buy A09-Y8NF Digi International with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A09-Y8NF.
