| Manufacturer Part Number: | A-HDF15-HOOD-WP |
|---|---|
| Manufacturer: | Assmann WSW Components |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9584 Pieces |
| Unit Price: | Quote by Email |

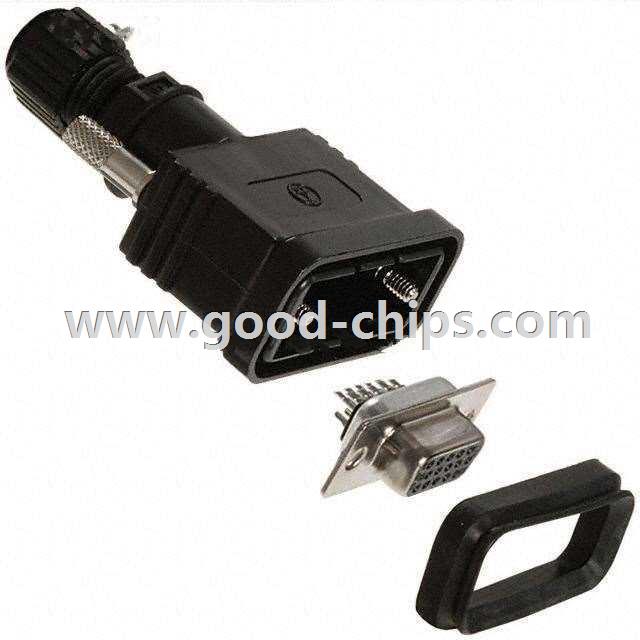

| Description: | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector, Free Hanging (In-Line) Solder Cup |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A-HDF15-HOOD-WP Datasheet |
| Internal Part Number | 898-A-HDF15-HOOD-WP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Waterproof Connectors | |
| Featured Product | Assmann - D-Sub Waterproof Connectors Series | |
| Online Catalog | A-HDx Series (Waterproof) | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Assmann WSW Components | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 15 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 1 (DE, E) High Density | |
| Contact Type | Signal | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Cable Side, Male Jackscrew | |
| Termination | Solder Cup | |
| Features | Backshell, Gasket, Strain Relief | |
| Shell Material, Finish | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -20°C ~ 60°C | |
| Voltage Rating | - | |
| Current Rating | - | |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) | |
| Color | Black | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A-HDF15-HOOD-WP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A-HDF15-HOOD-WP is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of A-HDF15-HOOD-WP is new and unused, you can buy A-HDF15-HOOD-WP Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A-HDF15-HOOD-WP.
