| Manufacturer Part Number: | A-DS 25 LL-WP |
|---|---|
| Manufacturer: | Assmann WSW Components |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9053 Pieces |
| Unit Price: | Quote by Email |

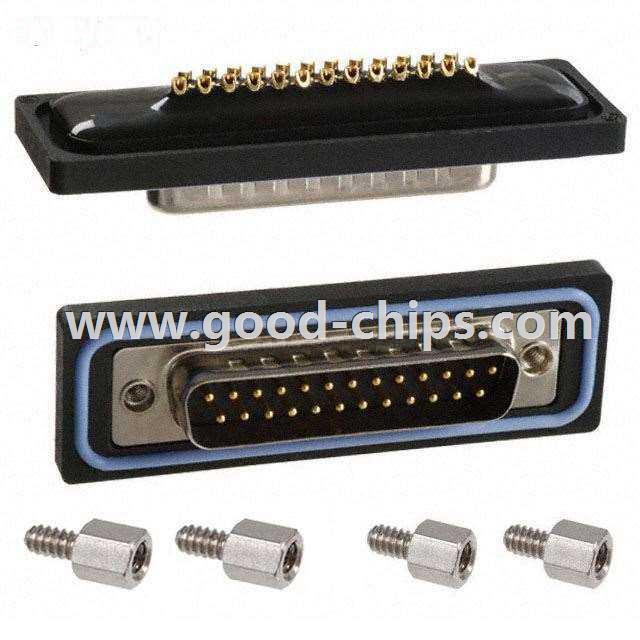

| Description: | 25 Position D-Sub Plug, Male Pins Connector, Panel Mount Solder Cup |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A-DS 25 LL-WP Datasheet |
| Internal Part Number | 898-A-DS 25 LL-WP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Waterproof Connectors | |
| Online Catalog | A-DF and A-DS Series (Waterproof) | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Assmann WSW Components | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 25 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 3 (DB, B) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount | |
| Flange Feature | Mating Side, Female Screwlock | |
| Termination | Solder Cup | |
| Features | Grounding Indents | |
| Shell Material, Finish | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -40°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 5A | |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | |
| Color | Black | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A-DS 25 LL-WP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A-DS 25 LL-WP is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of A-DS 25 LL-WP is new and unused, you can buy A-DS 25 LL-WP Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A-DS 25 LL-WP.
