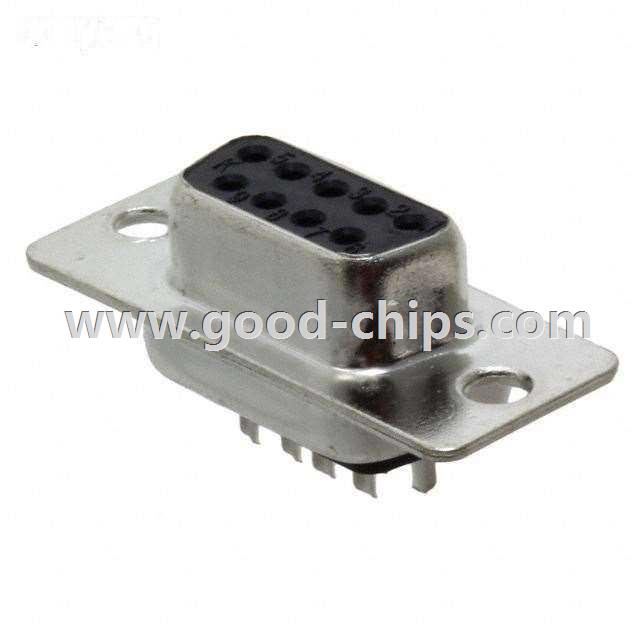

A-DF09LL-TL-B-R

A-DF09LL-TL-B-R
Manufacturer Part Number:A-DF09LL-TL-B-R
Manufacturer:
Product Category:D-Sub Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:9 Position D-Sub Receptacle, Female Sockets Connector, Free Hanging (In-Line) Solder Cup
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: A-DF09LL-TL-B-R Datasheet
A-DF09LL-TL-B-R´s Parameters
Internal Part Number898-A-DF09LL-TL-B-R
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
ManufacturerAssmann WSW Components
Series-
PackagingTray
Part StatusObsolete
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Number of Positions9
Number of Rows2
Shell Size, Connector Layout1 (DE, E)
Contact TypeSignal
Mounting TypeFree Hanging (In-Line)
Flange FeatureHousing/Shell (Unthreaded)
TerminationSolder Cup
Features-
Shell Material, FinishSteel
Contact FinishGold
Contact Finish ThicknessFlash
Ingress Protection-
Operating Temperature-55°C ~ 105°C
Voltage Rating250V
Current Rating3A
Housing MaterialPolybutylene Terephthalate (PBT)
ColorBlack
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement PartA-DF09LL-TL-B-R
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

A-DF09LL-TL-B-R is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of A-DF09LL-TL-B-R is new and unused, you can buy A-DF09LL-TL-B-R Assmann WSW Components with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for A-DF09LL-TL-B-R.
