Manufacturer Part Number: | A-DF 15 A/KG-T4S |
---|---|
Manufacturer: | Assmann WSW Components |
Product Category: | D-Sub Connectors |
Available Quantity: | 9191 Pieces |
Unit Price: | Quote by Email |

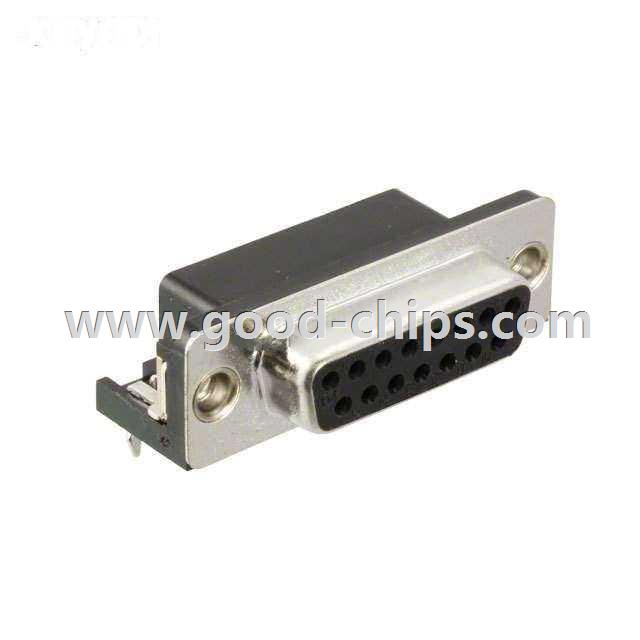

Description: | 15 Position D-Sub Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | A-DF 15 A/KG-T4S Datasheet |
Internal Part Number | 898-A-DF 15 A/KG-T4S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ADx Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Assmann WSW Components | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 15 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 2 (DA, A) | |
Contact Type | Signal | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Mating Side, Female Screwlock (4-40) | |
Termination | Solder | |
Features | Board Lock | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Ingress Protection | - | |
Operating Temperature | -20°C ~ 85°C | |
Voltage Rating | 250V | |
Current Rating | 3A | |
Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
Color | Black | |
Standard Package | 35 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | A-DF 15 A/KG-T4S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
A-DF 15 A/KG-T4S is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of A-DF 15 A/KG-T4S is new and unused, you can buy A-DF 15 A/KG-T4S Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A-DF 15 A/KG-T4S.
