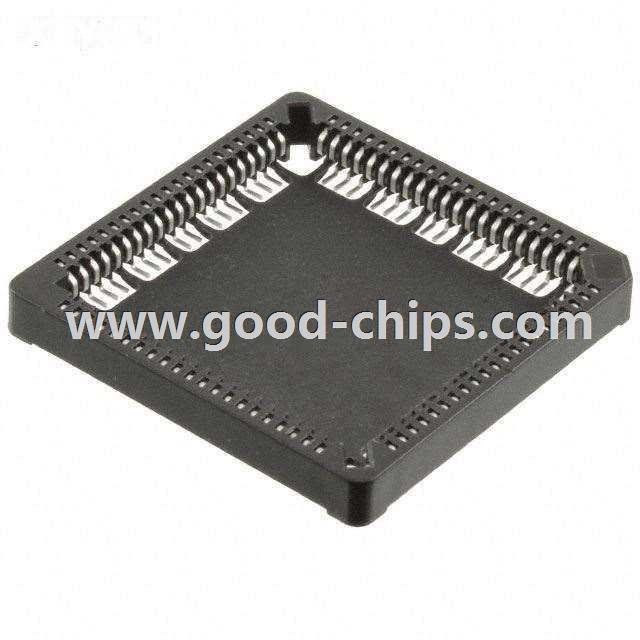

| Manufacturer Part Number: | A-CCS-084-Z-SM |
|---|---|
| Manufacturer: | Assmann WSW Components |
| Product Category: | Sockets for ICs, Transistors |
| Available Quantity: | 9110 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN SOCKET PLCC 84POS TIN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A-CCS-084-Z-SM Datasheet |
| Internal Part Number | 898-A-CCS-084-Z-SM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | A-CCS | |
| Category | Connectors, Interconnects | |
| Family | Sockets for ICs, Transistors | |
| Manufacturer | Assmann WSW Components | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | PLCC | |
| Number of Positions or Pins (Grid) | 84 (4 x 21) | |
| Pitch - Mating | 0.050" (1.27mm) | |
| Contact Finish - Mating | Tin | |
| Contact Finish Thickness - Mating | 160µin (4.06µm) | |
| Contact Material - Mating | Phosphor Bronze | |
| Mounting Type | Surface Mount | |
| Features | - | |
| Termination | Solder | |
| Pitch - Post | 0.050" (1.27mm) | |
| Contact Finish - Post | Tin | |
| Contact Finish Thickness - Post | 160µin (4.06µm) | |
| Contact Material - Post | Phosphor Bronze | |
| Housing Material | Polyamide (PA9T), Nylon 9T, Glass Filled | |
| Operating Temperature | -40°C ~ 105°C | |
| Termination Post Length | 0.122" (3.10mm) | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 1A | |
| Contact Resistance | 15 mOhm | |
| Standard Package | 16 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A-CCS-084-Z-SM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A-CCS-084-Z-SM is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of A-CCS-084-Z-SM is new and unused, you can buy A-CCS-084-Z-SM Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A-CCS-084-Z-SM.
