| Manufacturer Part Number: | 987 |
|---|---|
| Manufacturer: | Adafruit Industries LLC |
| Product Category: | Evaluation Boards - Audio Amplifiers |
| Available Quantity: | 9111 Pieces |
| Unit Price: | Quote by Email |

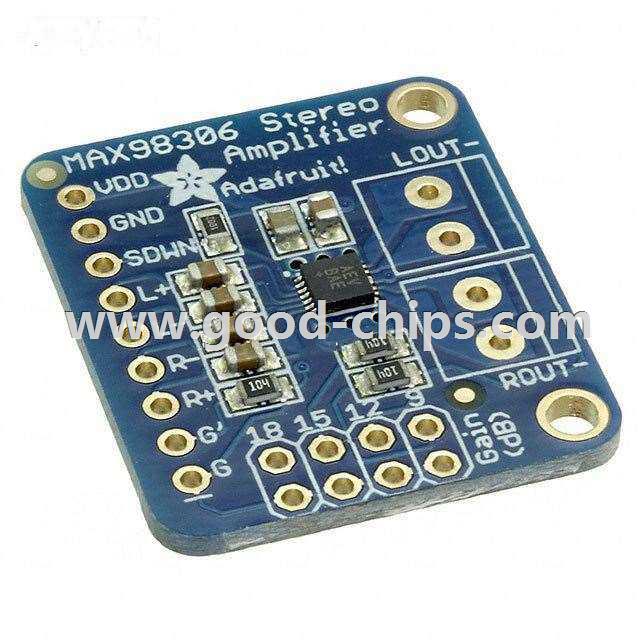

| Description: | MAX98306 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 987 Datasheet |
| Internal Part Number | 898-987 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector MAX98306 Schematic | |
| Online Catalog | MAX98306 Stereo 3.7W Class D Audio Amplifier | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Audio Amplifiers | |
| Manufacturer | Adafruit Industries LLC | |
| Series | - | |
| Part Status | Active | |
| Amplifier Type | Class D | |
| Output Type | 2-Channel (Stereo) | |
| Max Output Power x Channels @ Load | 3.7W x 2 @ 3 Ohm | |
| Voltage - Supply | 2.7 V ~ 5.5 V | |
| Board Type | Fully Populated | |
| Utilized IC / Part | MAX98306 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 987 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
987 is in stock for immediate shipping now. We are the distributor of Adafruit Industries LLC all series components. The condition of 987 is new and unused, you can buy 987 Adafruit Industries LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 987.
