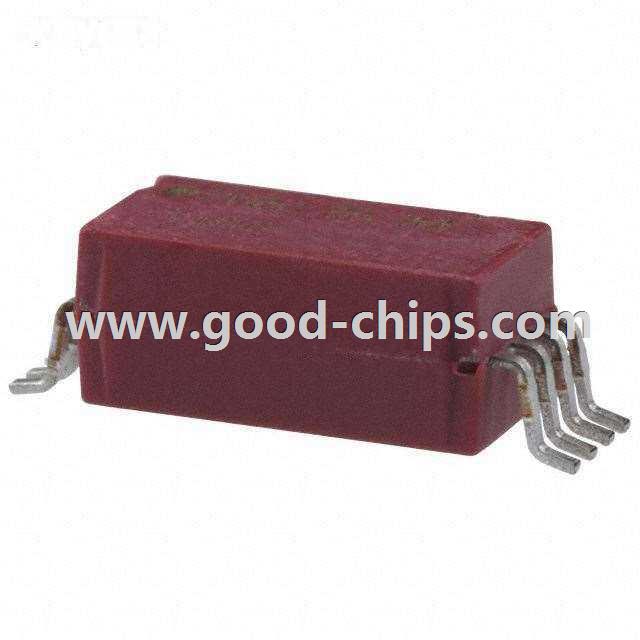

9802-05-00

9802-05-00
Manufacturer Part Number:9802-05-00
Manufacturer:
Product Category:Signal Relays, Up to 2 Amps
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:RF Relay SPST-NO (1 Form A) Surface Mount
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):2 (1 Year)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 9802-05-00 Datasheet
9802-05-00´s Parameters
Internal Part Number898-9802-05-00
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryRelays
FamilySignal Relays, Up to 2 Amps
ManufacturerCoto Technology
Series9800
PackagingBulk
Part StatusObsolete
Relay TypeRF
Coil TypeNon Latching
Coil Current33.3mA
Coil Voltage5VDC
Contact FormSPST-NO (1 Form A)
Contact Rating (Current)250mA
Switching Voltage100VAC, 100VDC - Max
Turn On Voltage (Max)3.8 VDC
Turn Off Voltage (Min)0.4 VDC
Operate Time0.25ms
Release Time0.05ms
FeaturesMagnetic Shield
Mounting TypeSurface Mount
Termination StyleGull Wing
Contact Material-
Coil Power-
Coil Resistance150 Ohms
Operating Temperature-20°C ~ 85°C
Standard Package 98
Weight0.001 KG
ApplicationEmail for details
Replacement Part9802-05-00
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

9802-05-00 is in stock for immediate shipping now. We are the distributor of Coto Technology all series components. The condition of 9802-05-00 is new and unused, you can buy 9802-05-00 Coto Technology with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 9802-05-00.
