Manufacturer Part Number: | 961430-8041404-AR |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
Available Quantity: | 9691 Pieces |
Unit Price: | Quote by Email |

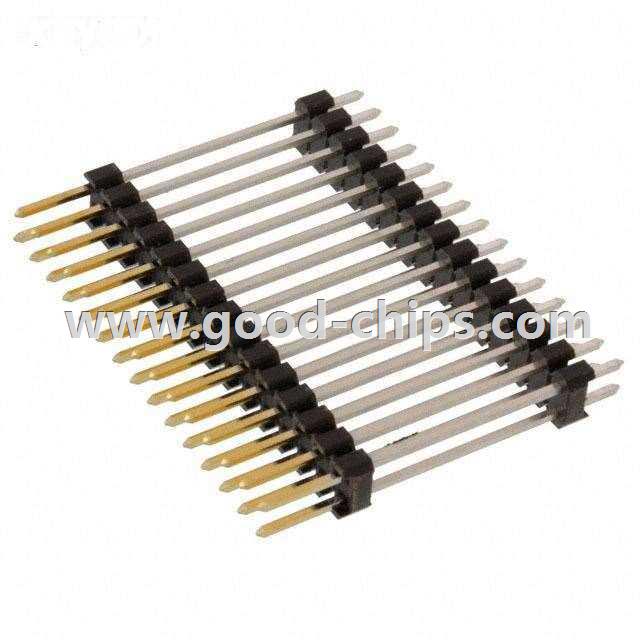

Description: | 30 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 961430-8041404-AR Datasheet |
Internal Part Number | 898-961430-8041404-AR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 961430-8041404-xx.igs 961430-8041404-xx.stp 961430-8041404-xx.x_t | |
Online Catalog | 961 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers | |
Manufacturer | 3M | |
Series | 961 | |
Packaging | Bulk | |
Part Status | Active | |
Number of Positions | 30 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Length - Overall | 1.244" (31.60mm) | |
Length - Post (Mating) | 0.256" (6.50mm) | |
Length - Stack Height | 0.858" (21.80mm) | |
Length - Tail | 0.130" (3.30mm) | |
Mounting Type | Through Hole | |
Termination | Solder | |
Contact Finish - Post (Mating) | Gold | |
Contact Finish Thickness - Post (Mating) | Flash | |
Color | Black | |
Standard Package | 240 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 961430-8041404-AR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
961430-8041404-AR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 961430-8041404-AR is new and unused, you can buy 961430-8041404-AR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 961430-8041404-AR.
